Overview

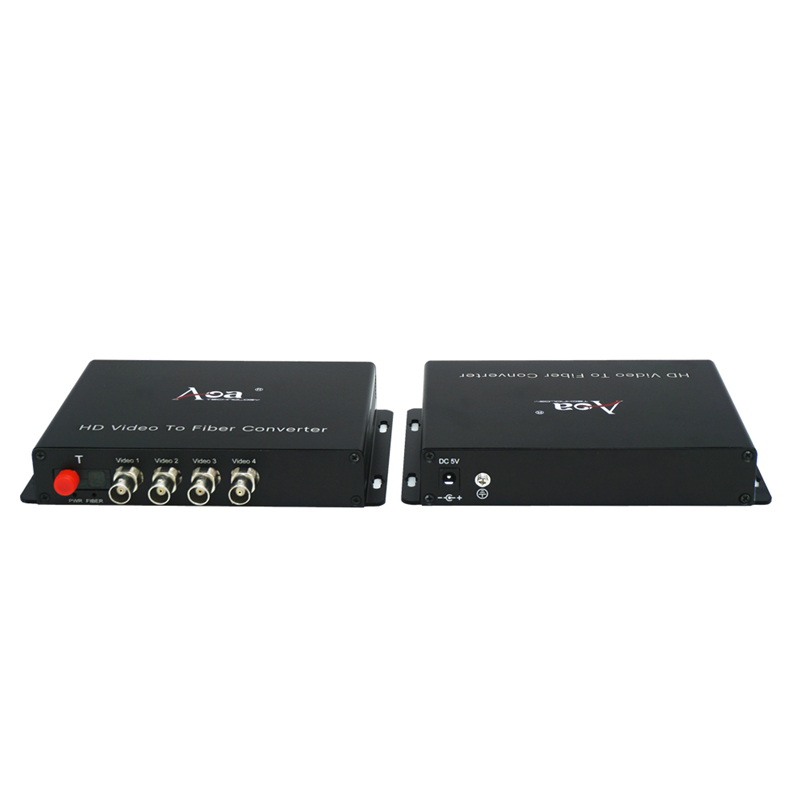

HD Video to fiber converters adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the HD video composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.
Features
- Non-compression coding technology
- Automatically identify formats of input videos.
- Support transmission of 4 channel HD video signal and controlling data simultaneously though coaxial cable
- DC 5V power supply
- Support 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30 videos etc.
- Through LED indicators to inform its functional mode
- Industrial wide range of operational temperature
- Plug and play, simple installation.
Application
- Intelligence Traffic Monitor system（ITS）
- Metro/High-speed way monitor system
- Electric power/hydraulic Safety Monitor system
- Industrial mining enterprises Security System
- Long-distance multimedia teaching/ Campus Security
- CATV long-distance transmission
- Building Automatic Security System
Technical Indexes
Parameter | Specifications |
HD Video | Interface | BNC |
Input level | >500mVp-p |
Output level | 1Vp-p |
Input/Output Impedance | 75 Ω |
Bandwidth | 30MHz(720P); 60MHz(1080P) |
Digit bit width | 8bit |
Data | Interface | Standard industrial terminals |
Interface Signals | RS485 |
Baud Rate | 1200~9600bit/s |
Bit Error Rate | <10-9 |
Optical | Interface | FC (default) ,SC,ST (optional) |
Fiber Type | Single mode, single fiber (default) |
Distance | 0km~80km |
Wavelength | 1310nm/1550nm |
General | Indicators | LOS,PWR,VIDEO |
Mean time between failures(MTBF) | >100 000 hours |
Power supply | DC5V/2A |
Operating Temperature | -20 C~+70 C |
Humidity | 0%~95% (non-condensing) |
Dimension | 720P Device:16.7*11.3*2.8mm,0.45kg; 720P Packing: 34.5*21*7.5mm,1.1kg; 1080P Device:16.7*11.3*2.8mm,0.45kg; 1080P Packing: 34.5*21*7.5mm,1.1kg |
Order Information
Model No. | Description |
HDV-0407DT | 720P; 4-ch HD Video to Fiber; FC 20km; Transmitter |
HDV-0407DR | 720P; 4-ch HD Video to Fiber; FC 20km; Receiver |
HDV-0417DT | 720P; 4-ch HD Video + 1-ch return data to Fiber; FC 20km; Transmitter |
HDV-0417DR | 720P; 4-ch HD Video + 1-ch return data to Fiber; FC 20km; Receiver |
HDV-0408DT | 1080P; 4-ch HD Video to Fiber; FC 20km; Transmitter |
HDV-0408DR | 1080P; 4-ch HD Video to Fiber; FC 20km; Receiver |
HDV-0418DT | 1080P; 4-ch HD Video + 1-ch return data to Fiber; FC 20km; Transmitter |
HDV-0418DR | 1080P; 4-ch HD Video + 1-ch return data to Fiber; FC 20km; Receiver |
