Overview

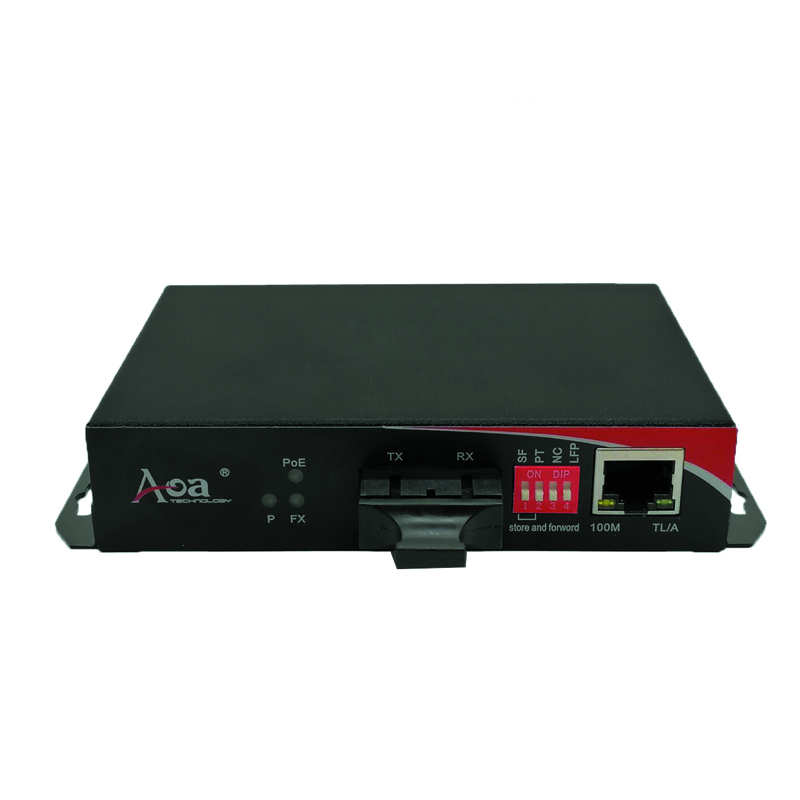

The AOM-1100P series Industrial POE Media Converter is the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices, which are installed 100m far from a Power over Ethernet switch. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote Power over Ethernet Device to operate without the need of any additional power source. All Power over Ethernet Powered Devices (IEEE 802.3af/at complaint) are supported, as the AOM-1100P series can deliver a full 15.4W / 30W of power to the remote device.
The AOM-1100P features a 100Base-FX fiber port and a 10/100Base-TX twisted-pair port. The fiber optic port features SC connector and operating distance from 2km to 120km depending on different Model. The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100m.
Features
- UTP with POE to fiber media converter
- IEEE 802.3af/at complaint
- RJ45 support auto MDI/MDI-X function
- Auto-negotiation speed, half/full-duplex
- Store-and-forward & Cut-thought optional
- Built-in LFP (Link-fault-pass-through) function
- Jumbo frame: 9kbytes
- Support operating temperature (-10 ˚C~+65 ˚C)
- Support Ethernet ESD protection
- Desk top and Wall- Mounted Installation
- Low power consumption
Technical Specifications
Standards | IEEE802.3 10BaseT; IEEE802.3u 100BaseT(X) IEEE802.3x Flow control; IEEE802.1d Spanning Tree IEEE 802.3af/at POE |
Performance | Processing Type: Store and Forward, Cut-through Back Bandwidth: 0.4Gbps MAC Address Size: 2Kbit Packet Buffer Size: 1Mbit Time Delay: <10us Frame: 9kbytes |
Copper Port | Data Rate: 10/100M Connector: RJ45 Distance: 100m |
Fiber Port | Data Rate: 155M Connector: SC as default, FC/ST Optional Distance: MMF=2km,SMF =20/40/80/100/120km, Bi-di=20/40/80/100/120km |
Dip-switch | Dip1 ON + Dip2 ON = Modified Cut-through Mode Dip4 ON = LFP Enable; Dip4 Off = LFP Disable |
LED indicators | PWR1: ON=Power Connected PWR2: ON= Power Connected FL/A: ON=Fiber Connected; Active=Data Transmitting TL/A: ON=Copper Connected; Active= Data Transmitting 100M: ON=100M Data Rate Transmitting POE: ON=Power Working; Off=No Power |
Power | Input Voltage: 48~56 VDC Power Consumption: ≤5W PoE Budget: 15.4W(PoE) 30W(PoE+) PoE Pin: 1236 |
Environment | Operating Temperature:-10 ˚C~+65 ˚C Storage Temperature: -40 ˚C ~+85 ˚C RelativeHumidity: 5-95% (no condensation) |
Physical Characteristics | Installation: Desk top, wall mounting(with optional kit) Dimension: 116*78*26mm(device); 210*173*72mm(packing) Weight: 0.24kg(device) |
Order Information
Model No. | Description |
AOM-1100P-M02 | 10/100M POE,MMF,1310nm,SC,2km |
AOM-1100P-S20 | 10/100M POE,SMF,1310nm,SC,20km |
AOM-1100P-S40 | 10/100M POE,SMF,1310nm,SC,40km |
AOM-1100P-A20 | 10/100M POE,Bi-di,TX1310/RX1550nm,SC,20km |
AOM-1100P-B20 | 10/100M POE,Bi-di,TX1550/RX1310nm,SC,20km |
AOM-1100P-A40 | 10/100M POE,Bi-di,TX1310/RX1550nm,SC,40km |
AOM-1100P-B40 | 10/100M POE,Bi-di,TX1550/RX1310nm,SC,40km |
Note: - SC connector as default, FC/ST as request
|
