Model NO.:
AOM-3100P
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
3000 pieces / Day
Country of Origin:
SHENZHEN
Stock Time:
5 Days

Overview

The AOM-3100P series Industrial POE Media Converter is the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices, etc., which are installed 100m far from a Power over Ethernet switch. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote Power over Ethernet Device to operate without the need of any additional power source. All Power over Ethernet Powered Devices (IEEE 802.3af/at complaint) are supported, as the AOM-3100P series can deliver a full 15.4W / 30W of power to the remote device.

The AOM-3100P features a 1000Base-X fiber port and a 10/100/1000Base-T twisted-pair port. The fiber optic port features SC connector and operating distance from 550m to 120km depending on different Model. The twisted-pair port has an RJ-45 connector with a maximum distance of 100m.

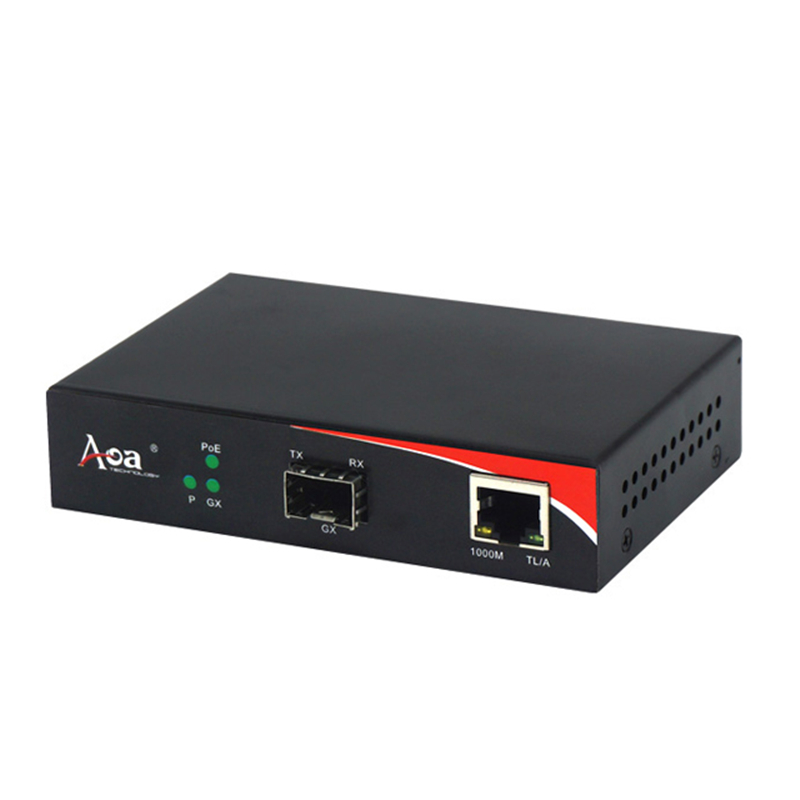

AOM-3100P-SFP features a 1000X SFP fiber Port and a 10/100/1000T twisted-pair port. The fiber optic port features a modular SFP slot for any kind of MSA-complaint pluggable 1.25Gbps SFP transceivers.

Features

  • UTP with POE to fiber media converter
  • IEEE 802.3af/at complaint
  • RJ45 support auto MDI/MDI-X function
  • Auto-negotiation speed, half/full-duplex
  • Store-and-forward
  • Jumbo frame: 1632bytes
  • Support operating temperature (-10 ˚C~+65 ˚C)
  • Support Ethernet ESD protection
  • Desk top and Wall- Mounted Installation
  • Low power consumption

Technical Specifications

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/LX standards

IEEE802.3x Flow control and back pressure

IEEE802.1d Spanning Tree

IEEE802.3af/at POE

Performance

Processing Type: Store and Forward

Back Bandwidth:4.0Gbps

MAC Address Size: 1Kbit

Packet Buffer Size: 1Mbit

Time Delay: <10us

Frame: 1632bytes

Copper Port

Data Rate: 10/100/1000M

Connector: RJ45

Distance: 100m

Fiber Port

Data Rate: 1.25G

Connector: SC as default, FC/ST/SFP Slot Optional

Distance:  MMF 550/2km,SMF 20/40/80/100/120km,

Bi-di:20/40/80/100/120km

LED indicators

P:    ON=Power Connected

GX:   ON=Fiber Connected; Active=Data Transmitting

TL/A:  ON=Copper Connected; Active= Data Transmitting

1000M: ON=1000M Data Rate Transmitting

POE:  ON=Power Working; Off=No Power

Power

Input Voltage: 48~56 VDC

Power Consumption: ≤5W

PoE Budget: 15.4W(PoE) 30W(PoE+)

PoE Pin: 1236

Environment

Operating Temperature: -10 ˚C~+65 ˚C

Storage Temperature: -40 ˚C ~+85 ˚C

RelativeHumidity: 5-95% (no condensation)

Physical Characteristics

Installation: Desk top, wall mounting(with optional kit)

Dimension: 116*78*26mm(device); 210*173*72mm(packing)

Weight: 0.24kg(device)

Order Information

Model No.

Description

AOM-3100P-SFP

10/100/1000M POE,SFP Slot

AOM-3100P-M05

10/100/1000M POE,MMF,850nm,SC,550m

AOM-3100P-S20

10/100/1000M POE,SMF,1310nm,SC,20km

AOM-3100P-S40

10/100/1000M POE,SMF,1310nm,SC,40km

AOM-3100P-A20

10/100/1000M POE,Bi-di,TX1310/RX1550nm,SC,20km

AOM-3100P-B20

10/100/1000M POE,Bi-di,TX1550/RX1310nm,SC,20km

AOM-3100P-A40

10/100/1000M POE,Bi-di,X1310/RX1550nm,SC,40km

AOM-3100P-B40

10/100/1000M POE,Bi-di,TX1550/RX1310nm,SC,40km

Note:

  1. SC connector as default,  FC/ST as request
