Overview
The AES1204P-SFP Industrial POE Switch is the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices, which are installed 100m far from a Power over Ethernet switch. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote Power over Ethernet Device to operate without the need of any additional power source. All Power over Ethernet Powered Devices (IEEE 802.3af/at complaint) are supported, as the Power Sourcing Equipment (PSE) device can deliver a full 15.4W / 30W of power to the remote PD device.
The AES1204P-SFP features2x 100Base-X SFP Slot and 4 x 10/100Base-TX twisted-pair port. The IES1204P-SFP providestwo SFP slot for any MSA-complaint pluggable 155M SFP transceivers. The twisted-pair port has 4 x RJ-45 connector with a maximum operating distance of 100m.
Features
- Provide 4 x 10/100Base-T(X)
- 2 x 100Base-X SFP Slot for Daisy-Chain
- IEEE802.3af/at compliant
- RJ45 support auto MDI/MDI-X function
- Auto-negotiation speed, half/full-duplex
- Store-and-forward
- Max packet size: 2048bytes
- Wide-range power design (48~56VDC)
- Provides EFT protection for Power line
- Support Ethernet ESD protection
- Desk-top Installation
- Low power consumption
Technical Specifications
Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE802.3x Flow control and back pressure IEEE802.1d Spanning Tree IEEE802.3af/at POE |
Performance | Processing Type: Store and Forward Back Bandwidth:1.2Gbps MAC Address Size:1024Kbit Packet Buffer Size:512Kbit Time Delay: <10us Frame:2048bytes |
Copper Port | Data Rate: 10/100M Connector: RJ45 x 4 Distance: 100m |
Fiber Port | Data Rate: 155M Connector: SFP slot x 2 Distance: Up to SFP Transceivers |
LED indicators | P: ON=Power Connected F1: ON=Fiber 1 Connected; Active=Data Transmitting F2: ON=Fiber 2 Connected; Active=Data Transmitting POE: ON=Power Working; Off=No Power L/A: ON=Copper Connected; Active= Data Transmitting |

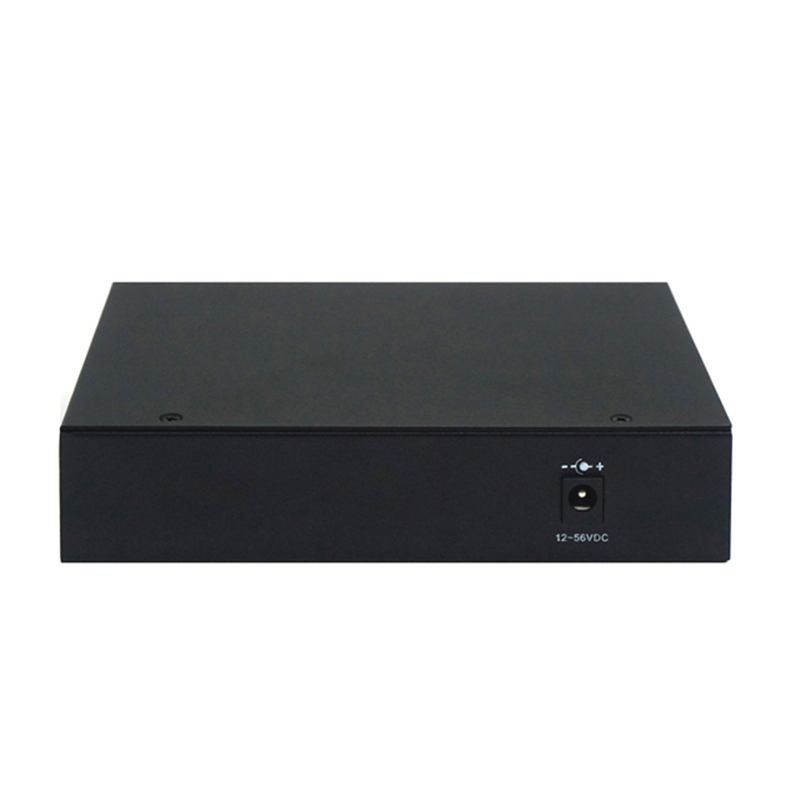

Power | Input Voltage: 12~56 VDC (PSE:48V) Power Consumption: ≤6W PoE Budget: 15.4Wx4=62W(PoE) 30Wx4=120W(PoE+) Connector: DC Socket |
Environment | Operating temperature : -10~65ºC Storage Temperature: -40~85ºC Relative Humidity: 5-95% (no condensation) |
Physical Characteristics | Installation: Desk-top Dimension: 140*103*31mm Weight: 0.64kg |
Order Information
Model No. | Description |
AES1204P-SFP | 10/100M 2FX4FE POE, SFP Slot; Ext.AC |
