Model NO.
AES3202
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
2000 pieces / Day
Country of Origin:
SHENZHEN
Stock Time:
5 Days
Quantity:

Overview

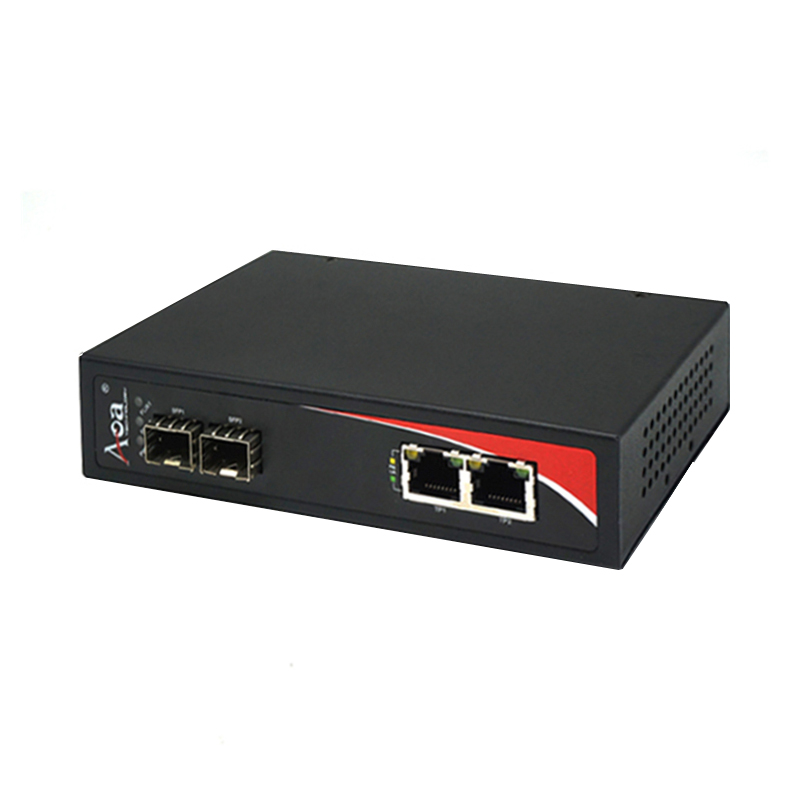

TheAES3202 is a high performance and cost-effective un-managed Ethernetswitch that meets the high reliability requirements of network operations. It designed to extend the distance of network by converting Gigabit Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.

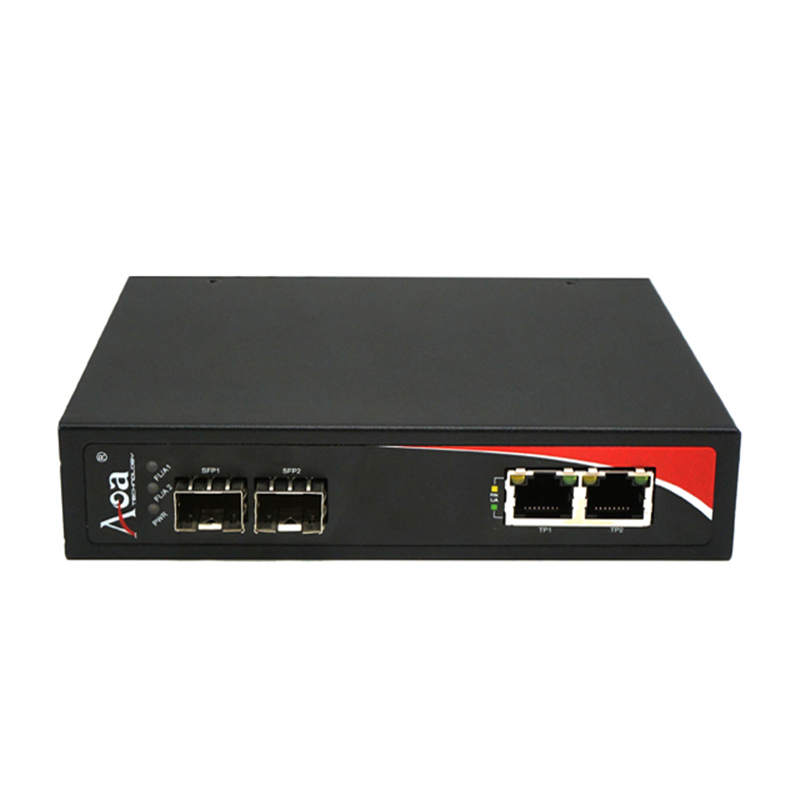

TheAES3202 features 2 x 1000Base-X SFP Slot and 2 x 10/100/1000Base-T twisted-pair port. The SFP slot port for any kind of MSA-compliant pluggable 1.25G SFP Transceivers. The twisted-pair port has 2 x RJ-45 connector with a maximum operating distance of 100m.

Features

  • Provide 2 x 10/100/1000Base-T
  • 2 x 1000Base-X SFP Slot for Daisy-Chain
  • RJ45 support auto MDI/MDI-X function
  • Auto-negotiation speed, half/full-duplex
  • Store-and-forward
  • Max packet size: 10K bytes
  • Wide-range power design (5~12VDC)
  • Provide EFT protection for Power line
  • Support Ethernet ESD protection
  • Desk-top Installation
  • Low power consumption

DIP Switch

DIP Switch Define

Dip1

Dip2

Dip3

Dip4

Default (10/100/1000M Auto-negotiation)

OFF

OFF

OFF

N/C

VLAN Logical Isolation

ON

OFF

OFF

VLAN Physical Isolation

OFF

ON

OFF

1+1 Fiber

ON

ON

OFF

Force 100M TX and RX port

OFF

OFF

ON

Note: The 1+1 Fiber function takes effect in using our 4 ports or 8 ports Industrial switch at both side; the one fiber device doesn't support this function.

Technical Specifications

Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX

IEEE 802.3ab 1000Base-TX

IEEE 802.3z 1000Base-FX

IEEE802.3x Flow control and back pressure

IEEE802.1d Spanning Tree

Performance

Processing Type: Store and Forward

Back Bandwidth:14Gbps

MAC Address Size:8Kbit

Packet Buffer Size: 1Mbit

Time Delay: <10us

Frame: 10Kbytes

Copper Port

Data Rate: 10/100/1000M

Connector: RJ45 x 2

Distance: 100m

Fiber Port

Data Rate: 1.25G

Connector: SFP slot x 2

Distance:  Up to SFP Transceivers

LED indicators

PWR: ON=Power Connected

FL/A1:ON=Fiber 1 Connected; Active=Data Transmitting

FL/A2:ON=Fiber 2 Connected; Active=Data Transmitting

L/A:  ON=Copper Connected; Active= Data Transmitting

P/N:  N/A

Power

Input Voltage: 5~12VDC

Power Consumption: ≤3W

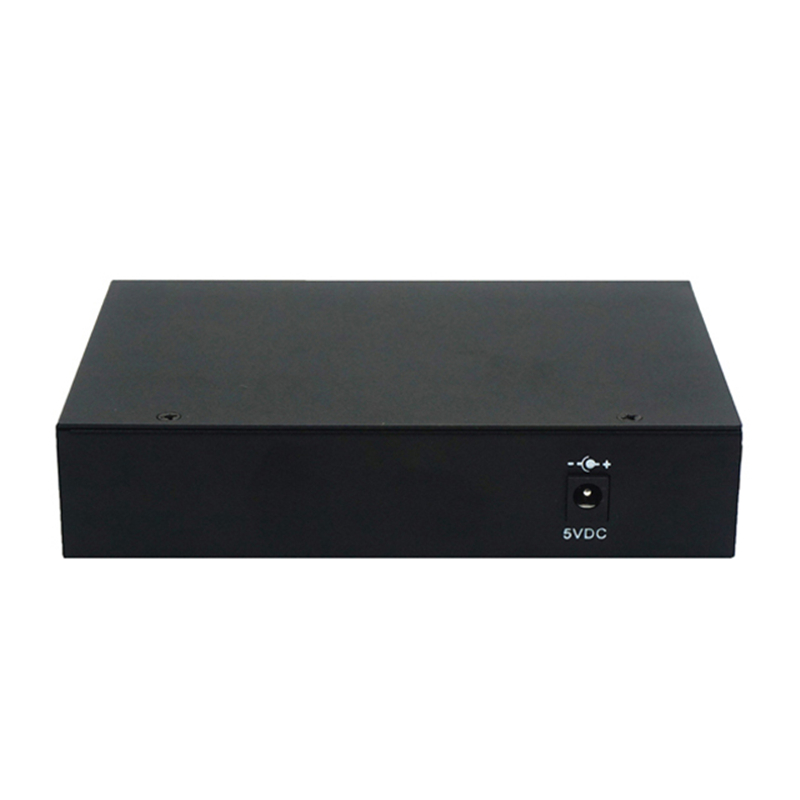

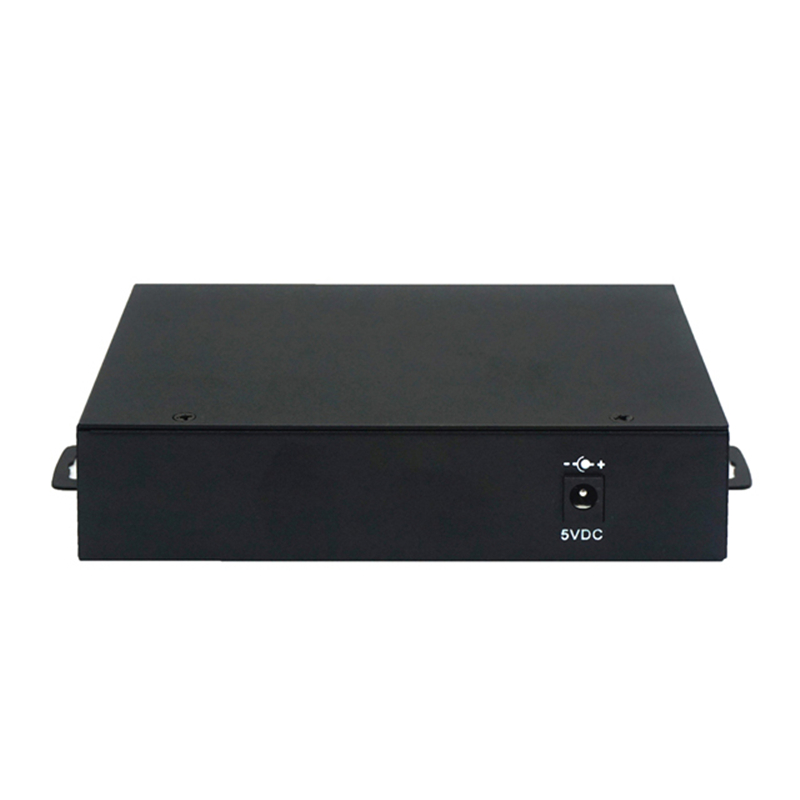

Connector: DC Socket

Environment

Operating temperature : -10~65ºC

Storage Temperature: -40~85ºC

RelativeHumidity: 5-95% (no condensation)

Physical Characteristics

Installation: Desk-top

Dimension:138*107*45mm(device); 220*175*73mm(packing)

Weight:0.48kg(device); 0.63kg(device with packing)

Order Information

Model No.

Description

AES3202-SFP

10/100/1000M 2GX4GE, SFP Slot; Ext.AC

AES3202D-SFP

10/100/1000M 2GX4GE, SFP Slot, DIP Switch; Ext.AC
