Overview

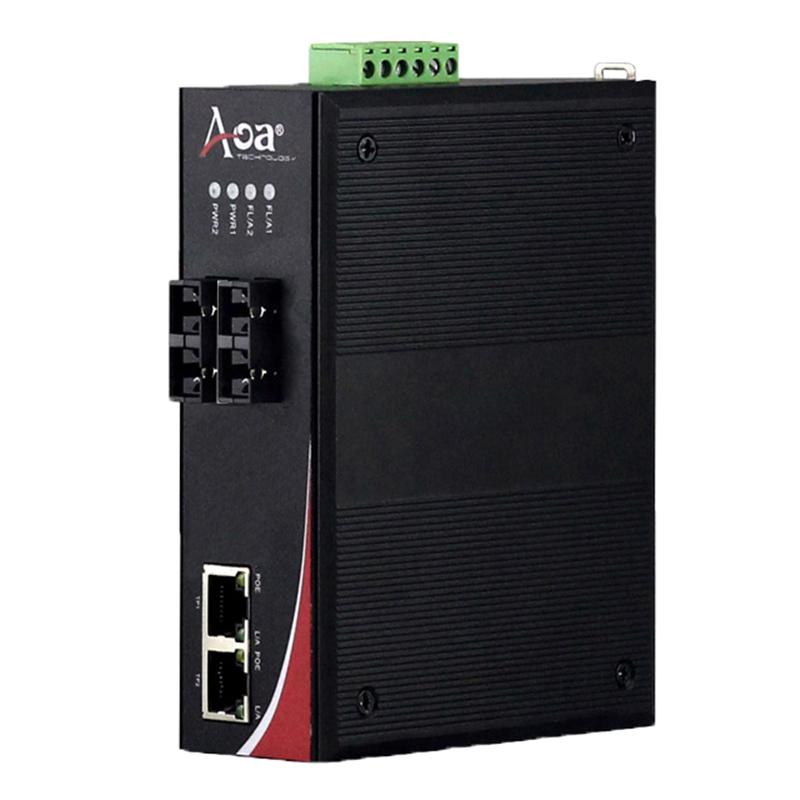

The IES3202P Industrial POE Switch is the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices, which are installed 100m far from a Power over Ethernet switch. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote Power over Ethernet Device to operate without the need of any additional power source. All Power over Ethernet Powered Devices (IEEE 802.3af/at complaint) are supported, as the Power Sourcing Equipment (PSE) device can deliver a full 15.4W / 30W of power to the remote PD device.
The IES3202Pfeatures2x 1000Base-X fiber port and 2 x 10/100/1000Base-T twisted-pair port. The fiber optic port features SC connector and operating distance from 550 to 120km depending on different Model. The twisted-pair port has 2 x RJ-45 connector with a maximum operating distance of 100m.
The IES3202P Industrial Gigabit Ethernet Switch is designed to stand up to extreme temperature, surges, vibrations, and shocks found in industrialautomation, government, military, oil & gas, mining and outdoor applications, such as traffic management, oil and gas pipelines.
The IES3202P series enables real-time deterministic network operation, requires no configuration and will instantly operate as soon as you power it up. Additionally, they can be installed by DIN-rail or wall-mounted, allowing users to deploy any mix of network conversions required.
Features
- Provide 2 x 10/100/1000Base-T
- 2 x 1000Base-X for Daisy-Chain and 1+1 Redundant Fiber
- IEEE803.3af/atcompliant
- RJ45 support auto MDI/MDI-X function
- Auto-negotiation speed, half/full-duplex
- Store-and-forward
- Max packet size: 10K bytes
- Support VLAN (Controlled by DIP Switch)
- Support Force 10M-150 meters (Controlled by DIP Switch)
- Support 1+1 Fiber (Controlled by DIP Switch)
- Support wide operating temperature (-40˚C~+85˚C)
- Wide-range redundant power design (12~56VDC)
- Power polarity reverse protect
- Overload current resettable fuse present
- IP-40protection
- Provide EFT protection for Power line
- Support Ethernet ESD protection
- DIN-Rail and Wall Mounting Installation
- Low power consumption
DIP Switch
DIP Switch Define | Dip1 | Dip2 | Dip3 | Dip4 |
Default (10/100/1000M Auto-negotiation) | OFF | OFF | OFF | N/C |
VLAN Logical Isolation | ON | OFF | OFF |
VLAN Physical Isolation | OFF | ON | OFF |
1+1 Fiber | ON | ON | OFF |
Force FX TX Port 100M | OFF | OFF | ON |
Note: The 1+1 Fiber function takes effect in using our same Industrial switch at both side; the one fiber device doesn't support this function. |
Technical Specifications
Standards | IEEE802.3 10Base-T IEEE802.3u100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE802.3x Flow control and back pressure IEEE802.1d Spanning Tree IEEE802.3af/at POE |
Performance | Processing Type: Store and Forward Back Bandwidth:12Gbps MAC Address Size:8Kbit Packet Buffer Size: 1Mbit Time Delay: <10us Frame: 10Kbytes |
Copper Port | Data Rate: 10/100/1000M Connector: RJ45 x 2 Distance: 100m |
Fiber Port | Data Rate: 1.25G Connector: SC as default, FC/ST/SFP optional Distance: MMF=550m/2km; SMF=20/40/80/100/120km Bi-Di=20/40/80/100/120km |
LED indicators | PWR1: ON=Power Connected PWR2: ON= Power Connected FL/A1: ON=Fiber 1 Connected; Active=Data Transmitting FL/A2: ON=Fiber 2 Connected; Active=Data Transmitting L/A: ON=Copper Connected; Active= Data Transmitting P/N:ON=POE Working; Off=No POE |
Power | Input Voltage: 12~56 VDC, redundant power inputs Power Consumption:≤5W PoE Budget: 15.4Wx2=30W(PoE) 30Wx2=60W(PoE+) Protection: Overload Current; Reverse Polarity Connector: Terminal Block |
Environment | Operating Temperature: -40 ˚C ~+85 ˚C Storage Temperature: -40 ˚C ~+95 ˚C RelativeHumidity: 5-95% (no condensation) |
Physical Characteristics | Housing: IP40 Protection, Aluminum Alloy Installation: DIN-rail mounting, wall mounting(with optional kit) Dimension: 138*107*45mm(device); 220*175*73mm(packing) Weight: 0.48kg(device); 0.63kg(device with packing) |
Standards and Certifications
EMC | CE |
EMI | FCC Part 15 CLASS A |
EMS | EN 61000-3-2: 2014 |
EN 61000-3-3: 2013 |
EN 61000-4-2: 2009 |
EN 61000-4-3: 2006+A2: 2010 |
EN 61000-4-4: 2012 |
EN 61000-4-5: 2014 |
EN 61000-4-6: 2014 |
EN 61000-4-11: 2004 |
LVD/Safety | IEC60950-1-A1-E |
Shock | IEC 60068-2-27 |
Freefall | IEC 60068-2-32 0.5m |
Vibration | IEC 60068-2-6 |
Railway Traffic | EN50121-4 |
Order Information
Model No. | Description |
IES3202P-M05 | 10/100/1000M 2GX2GEPOE,MMF,850nm,SC,550m |
IES3202P-S20 | 10/100/1000M 2GX2GEPOE,SMF,1310nm,SC,20km |
IES3202P-A20 | 10/100/1000M 2GX2GEPOE,Bi-di,TX1310/RX1550nm,SC,20km |
IES3202P-B20 | 10/100/1000M 2GX2GEPOE,Bi-di,TX1550/RX1310nm,SC,20km |
IES3202DP-M05 | 10/100/1000M 2GX2GEPOE,MMF,850nm,SC,550m,DIP Switch |
IES3202DP-S20 | 10/100/1000M 2GX2GEPOE,SMF,1310nm,SC,20km,DIP Switch |
IES3202DP-A20 | 10/100/1000M 2GX2GEPOE,Bi-di,TX1310/RX1550nm,SC,20km,DIP Switch |
IES3202DP-B20 | 10/100/1000M 2GX2GEPOE,Bi-di,TX1550/RX1310nm,SC,20km,DIP Switch |
Note: - Power supply provided by user or ordered additionally
- SC connector as default, FC/ST as request
|
