Model NO.
IES3105-SFP
Delivery:
FOB
Quantity:

Overview

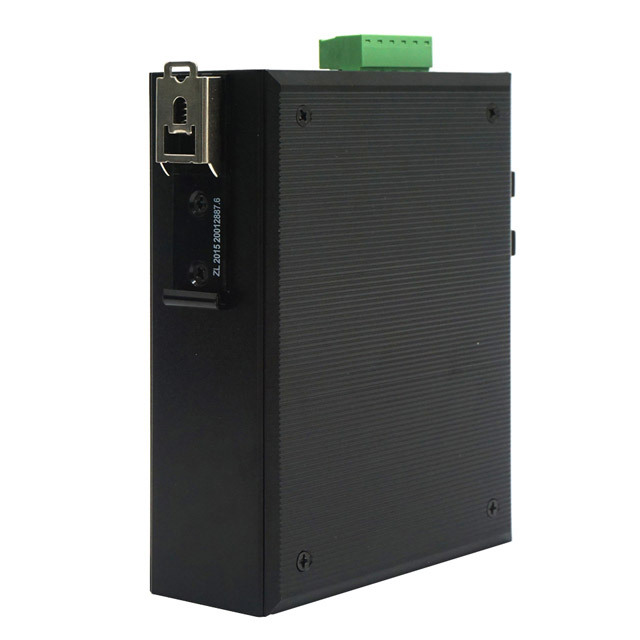

The IES3105-SFP is a high performance and cost-effective industrial un-managed switch that meets the high reliability requirements of industrial network operations. It designed to extend the distance of network by converting Gigabit Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.

The IES3105-SFP features1x 1000Base-X SFP Slot and 5 x 10/100/1000Base-T twisted-pair port.     The SFP slot port for any kind of MSA-compliant pluggable 1.25G SFP Transceivers. The twisted-pair port has 5 x RJ-45 connector with a maximum operating distance of 100m.

The IES3105-SFP Industrial Gigabit Ethernet Switch is designed to stand up to extreme temperature, surges, vibrations, and shocks found in industrial automation, government, military, oil & gas, mining and outdoor applications, such as traffic management, oil and gas pipelines.

The IES3105-SFP series enables real-time deterministic network operation, requires no configuration and will instantly operate as soon as you power it up. Additionally, they can be installed by DIN-rail or wall-mounted, allowing users to deploy any mix of network conversions required

Features

  • Provide 5 x 10/100/1000Base-T
  • 1 x 1000Base-X SFP Slot
  • RJ45 support auto MDI/MDI-X function
  • Auto-negotiation speed, half/full-duplex
  • Store-and-forward
  • Max packet size: 10K bytes
  • Support VLAN (Controlled by DIP Switch)
  • Support Force 10M-150 meters (Controlled by DIP Switch)
  • Support wide operating temperature (-40 ˚C~+85 ˚C)
  • Wide-range redundant power design (12-56Vd.c.)
  • Power polarity reverse protect
  • Overload current resettable fuse present
  • IP-40 protection
  • Provide EFT protection for Power line
  • Support Ethernet ESD protection
  • DIN-Rail and Wall-Mounted Installation
  • Low power consumption

DIP Switch

DIP Switch Define

Dip1

Dip2

Dip3

Dip4

Default (10/100/1000M Auto-negotiation)

OFF

OFF

OFF

N/C

VLAN Logical Isolation

ON

OFF

OFF

VLAN Physical Isolation

OFF

ON

OFF

Force 10M (150 meters)

ON

ON

OFF

1+1 Fiber

OFF

OFF

ON

1+1 Fiber + VLAN Logical isolation

ON

OFF

ON

1+1 Fiber + VLAN Physical isolation

OFF

ON

ON

1+1 Fiber + Force 10M (150 meters)

ON

ON

ON

Note: The two fiber device supports 1+1 Fiber function, the one fiber device doesn't support that.

Technical Specifications

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/LX standards

IEEE802.3x Flow control and back pressure

IEEE802.1d Spanning Tree

Performance

Processing Type: Store and Forward

Back Bandwidth:12Gbps

MAC Address Size:1Kbit

Packet Buffer Size: 1Mbit

Time Delay: <10us

Frame: 10Kbytes

Copper Port

Data Rate: 10/100/1000M

Connector: RJ45 x 5

Distance: 100m

Fiber Port

Data Rate: 1.25G

Connector: SFP slot x 1

Distance:  Up to SFP Transceivers

LED indicators

PWR1: ON=Power Connected

PWR2: ON= Power Connected

FL/A:  ON=Fiber Connected; Active=Data Transmitting

L/A:  ON=Copper Connected; Active= Data Transmitting

1000M: ON=1000M; OFF=10/100M

Power

Input Voltage: 12-56Vd.c., redundant power inputs

Power Consumption: ≤7W

PoE Budget: 15.4Wx4=62W(PoE) 30Wx4=120W(PoE+)

Protection: Overload Current; Reverse Polarity

Connector: Terminal Block

Environment

Operating Temperature: -40 ˚C ~+85 ˚C

Storage Temperature: --40 ˚C~+95 ˚C

RelativeHumidity: 5-95% (no condensation)

Physical Characteristics

Housing: IP40 Protection, Aluminum Alloy

Installation: DIN-rail mounting, wall mounting(with optional kit)

Dimension: 138*107*45mm(device); 220*175*73mm(packing)

Weight: 0.48kg(device); 0.63kg(device with packing)

Standards and Certifications

EMC

CE

EMI

FCC Part 15  CLASS A

EMS

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 61000-4-2: 2009

EN 61000-4-3: 2006+A2: 2010

EN 61000-4-4: 2012

EN 61000-4-5: 2014

EN 61000-4-6: 2014

EN 61000-4-11: 2004

LVD/Safety

IEC60950-1-A1-E

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32 0.5m

Vibration

IEC 60068-2-6

Railway Traffic

EN50121-4

Order Information

Model No.

Description

IES3105-SFP

10/100/1000M 1GX5GE, SFP Slot

IES3105D-SFP

10/100/1000M 1GX5GE, SFP Slot, DIP Switch

Note:

1.Power supply provided by user or ordered additionally
