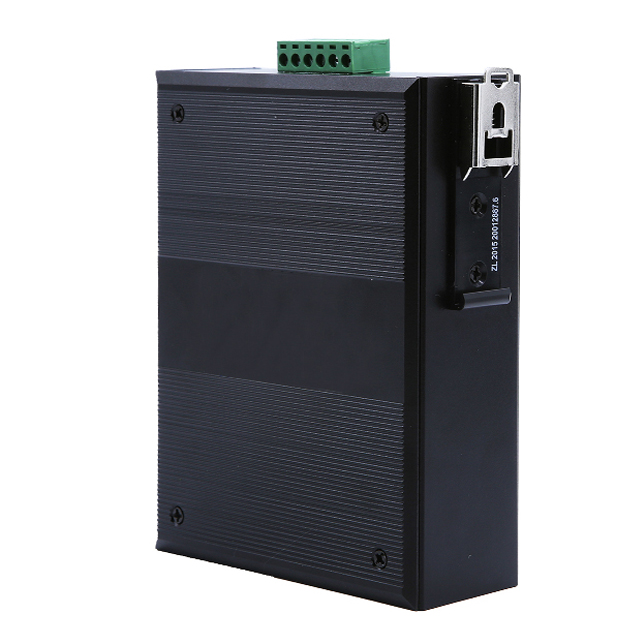

The IES3208-SFP is a high performance and cost-effective industrial un-managed switch that meets the high reliability requirements of industrial network operations. It designed to extend the distance of network by converting Gigabit Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.
The IES3208-SFP features 2x 1000Base-X SFP Slot and 8 x 10/100/1000Base-T twisted-pair port. The SFP slot port for any kind of MSA-compliant pluggable 1.25G SFP Transceivers.The twisted-pair port has 8 x RJ-45 connector with a maximum operating distance of 100m.
The IES3208-SFP Industrial Gigabit Ethernet Switch is designed to stand up to extreme temperature, surges, vibrations, and shocks found in industrialautomation, government, military, oil & gas, mining and outdoor applications, such as traffic management, oil and gas pipelines.
The IES3208-SFPseries enables real-time deterministic network operation, requires no configuration and will instantly operate as soon as you power it up. Additionally, they can be installed by DIN-rail or wall-mounted, allowing users to deploy any mix of network conversions required.
Provide 8 x 10/100/1000Base-T
2 x 1000Base-X SFP Slot for Daisy-Chain
RJ45 support auto MDI/MDI-X function
Auto-negotiation speed, half/full-duplex
Max packet size: 10K bytes
Support VLAN (Controlled by DIP Switch)
Support Force 10M-150 meters (Controlled by DIP Switch)
