Industrial Media Converter
Industrial Media Converter
Industrial Media Converter
Industrial Media Converter

Industrial Media Converter

Model NO.:
IMC1100
Delivery:
FOB

Overview

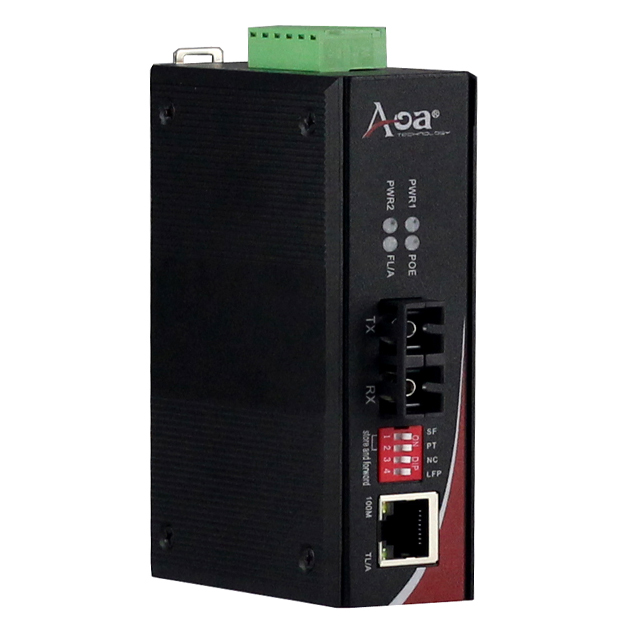

The IMC1100 series Industrial Media Converter is designed to extend the distance of a network by converting Fast Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.

The IMC1100 features 1 x 100Base-FX fiber port and 1 x 10/100Base-TX twisted-pair port. The fiber optic port features SC connector and operating distance from 2km to 120km depending on different Model. The twisted-pair port has 1 x RJ-45 connector with a maximum operating distance of 100m.

The IMC1100 Industrial Ethernet Switch is designed to stand up to extreme temperature, surges, vibrations, and shocks found in industrial automation, government, military, oil & gas, mining and outdoor applications, such as traffic management, oil and gas pipelines.

The IMC1100 series enables real-time deterministic network operation, requires no configuration and will instantly operate as soon as you power it up. Additionally, they can be installed by DIN-rail or wall-mounted, allowing users to deploy any mix of network conversions required.

Features

  • UTP to fiber media converter
  • RJ45 support auto MDI/MDI-X function
  • Auto-negotiation speed, half/full-duplex
  • Store-and-forward & Cut-thought working mode optional
  • Built-in LFP (Link-fault-pass-through) function
  • Jumbo frame: 9kbytes
  • Support wide operating temperature (-40 ˚C~+85 ˚C)
  • Wide-range redundant power design (12-56Vd.c.)
  • Power polarity reverse protect
  • Overload current resettable fuse present
  • IP-40 protection
  • Provide EFT protection for Power line
  • Support Ethernet ESD protection

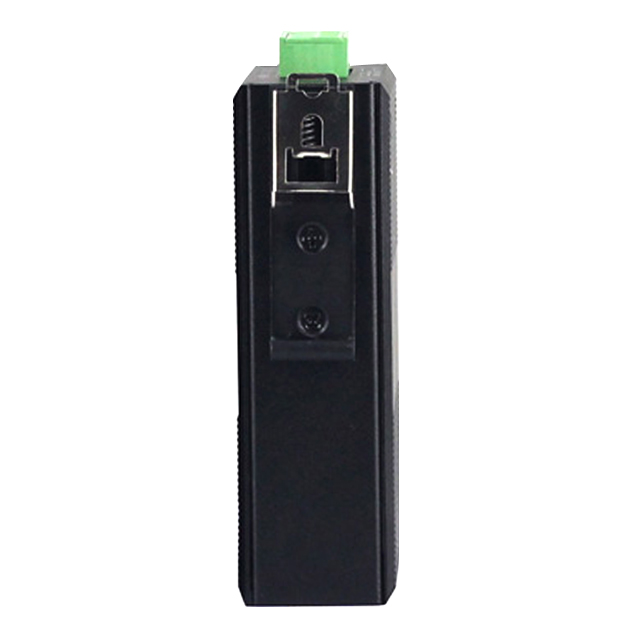

  • DIN-Rail and Wall-Mounted Installation
  • Low power consumption

DIP Switch

DIP Switch Define

Dip1

Dip2

Dip3

Dip4

Modified Cut-through Mode

ON

ON

N/C

OFF

Converter Mode

ON

OFF

OFF

Cut-through

OFF

ON

OFF

Store and forward mode

OFF

OFF

OFF

LFP Enable

OFF

OFF

ON

Technical Specifications

Standards

IEEE802.3 10BaseT

IEEE802.3u 100BaseT(X)

IEEE802.3x Flow control and back pressure

IEEE802.1d Spanning Tree

Performance

Processing Type: Store and Forward, Cut-through

Back Bandwidth: 0.4Gbps

MAC Address Size: 2Kbit

Packet Buffer Size: 1Mbit

Time Delay: <10us

Frame: 9kbytes

Copper Port

Data Rate: 10/100M

Connector: RJ45

Distance: 100m

Fiber Port

Data Rate: 155M

Connector: SC as default, FC/ST Optional

Distance:  MMF 2km,SMF 20/40/80/100/120km,

Bi-di:20/40/80/100/120km

LED indicators

PWR1: ON=Power Connected

PWR2: ON= Power Connected

FL/A:  ON=Fiber Connected; Active=Data Transmitting

TL/A:  ON=Copper Connected; Active= Data Transmitting

100M:  ON=100M; OFF=10M

Power

Input Voltage: 12-56Vd.c., redundant power inputs

Power Consumption: ≤5W

Protection: Overload Current; Reverse Polarity

Connector: Terminal Block

Environment

Operating Temperature: --40 ˚C ~+85 ˚C

Storage Temperature: -40 ˚C ~+95 ˚C

RelativeHumidity: 5-95% (no condensation)

Physical Characteristics

Housing: IP40 Protection, Aluminum Alloy

Installation: DIN-rail mounting, wall mounting(with optional kit)

Dimension: 115*81*35mm(device); 220*175*73mm(packing)

Weight: 0.30kg(device); 0.43kg(device with packing)

Standards and Certifications

EMC

CE

EMI

FCC Part 15  CLASS A

EMS

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 61000-4-2: 2009

EN 61000-4-3: 2006+A2: 2010

EN 61000-4-4: 2012

EN 61000-4-5: 2014

EN 61000-4-6: 2014

EN 61000-4-11: 2004

LVD/Safety

IEC60950-1-A1-E

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32 0.5m

Vibration

IEC 60068-2-6

Railway Traffic

EN50121-4

Order Information

Model No.

Description

IMC1100-M02

10/100M MMF,1310nm,SC,2km

IMC1100-S20

10/100M SMF,1310nm,SC,20km

IMC1100-A20

10/100M Bi-di,TX1310/RX1550nm,SC,20km

IMC1100-B20

10/100M Bi-di,TX1550/RX1310nm,SC,20km

Note:

  1.Power supply provided by user or ordered additionally
  2.
SC connector as default,  FC/ST as request
