Model NO.:
IMC3100
Delivery:
FOB

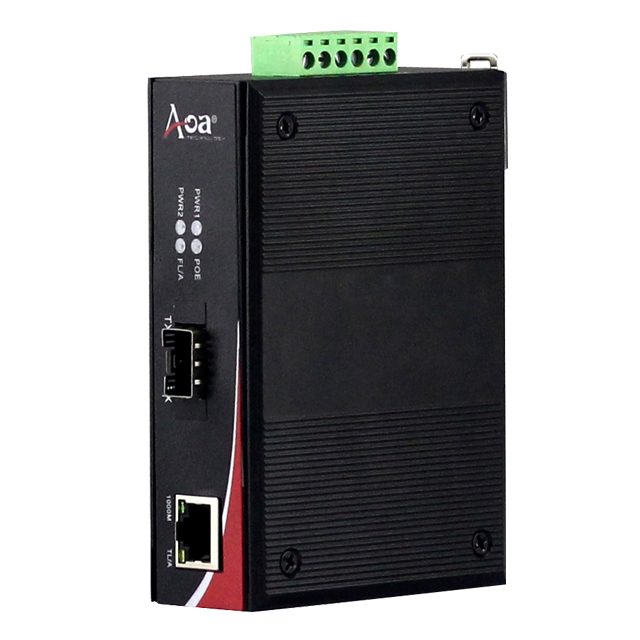

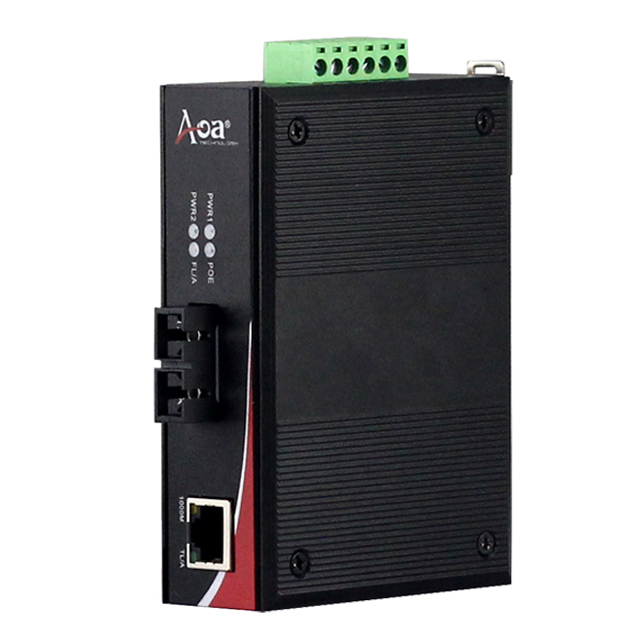

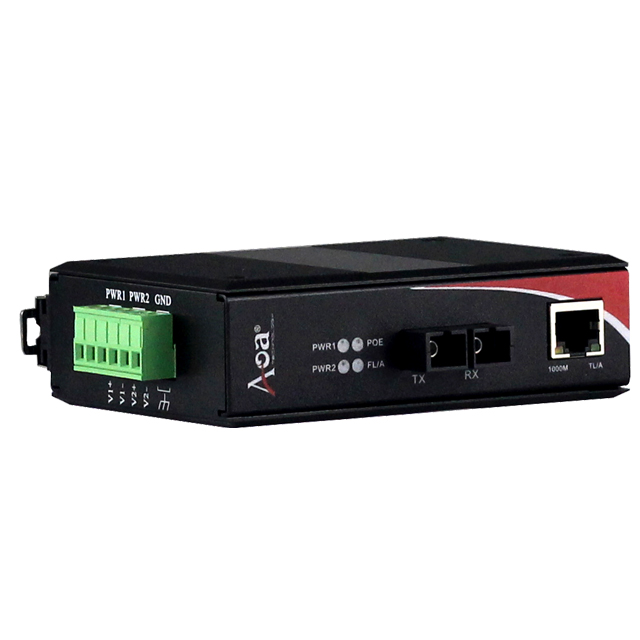

Overview

The IMC3100seriesIndustrial Media Converter is designed to extend the distance of a network by converting Giga Ethernet data between twisted pair cabling and multi-mode or single-mode fiber-optic cabling.

The IMC3100 features 1x 1000Base-X fiber port and 1 x 10/100/1000Base-T twisted-pair port. The fiber optic port features SC connector and operating distance from 550 to 120km depending on different Model. The twisted-pair port has 1 x RJ-45 connector with a maximum operating distance of 100m.

TheIMC3100 Industrial Gigabit Ethernet Switch is designed to stand up to extreme temperature, surges, vibrations, and shocks found in industrialautomation, government, military, oil & gas, mining and outdoor applications, such as traffic management, oil and gas pipelines.

TheIMC3100 series enables real-time deterministic network operation, requires no configuration and will instantly operate as soon as you power it up. Additionally, they can be installed by DIN-rail or wall-mounted, allowing users to deploy any mix of network conversions required.

Features

  • UTP to fiber media converter
  • RJ-45 port support auto MDI/MDI-X function
  • Auto-negotiation speed, half/full-duplex
  • Store-and-forward switching architecture
  • Support wide operating temperature (-40˚C~+85˚C)
  • Wide-range redundant power design (12-56Vd.c.)
  • Power polarity reverse protect
  • Overload current resettable fuse present
  • IP-40protection
  • Provide EFT protection for Power line
  • Support Ethernet ESD protection
  • DIN-Rail and Wall Mounting Installation
  • Low power consumption

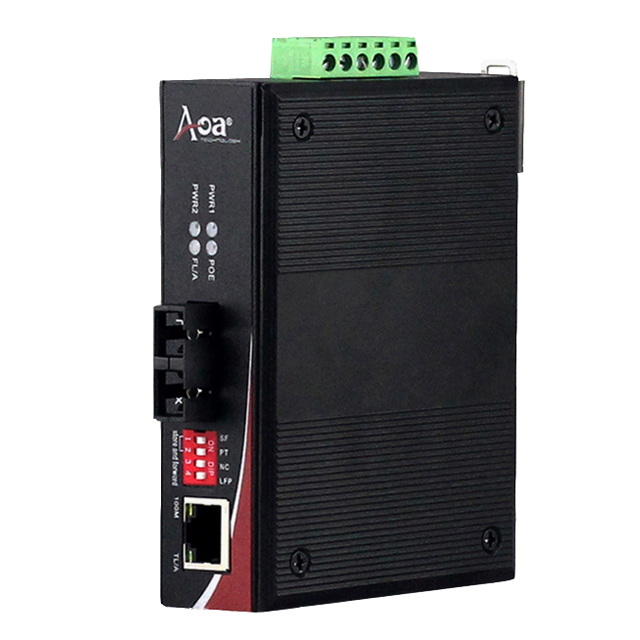

DIP Switch

DIP Switch Define

Dip1

Dip2

Dip3

Dip4

Default (10/100/1000M Auto-negotiation)

OFF

OFF

OFF

N/C

Force 1000M

ON

OFF

OFF

Force 10M(150 meters)

OFF

ON

OFF

Fiber Port Force 100M

OFF

OFF

ON

10/100/1000MAuto-negotiation

ON

ON

OFF

Note: The two fiber device supports 1+1 Fiber function, the one fiber device doesn't support that.

Technical Specifications

Standards

IEEE802.3 10Base-T

IEEE802.3u100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/LX standards

IEEE802.3x Flow control and back pressure

IEEE802.1d Spanning Tree

Performance

Processing Type: Store and Forward

Back Bandwidth:4.0Gbps

MAC Address Size:1Kbit

Packet Buffer Size: 1Mbit

Time Delay: <10us

Frame: 1632bytes

Copper Port

Data Rate: 10/100/1000M

Connector: RJ45

Distance: 100m

Fiber Port

Data Rate: 1.25G

Connector: SC as default, FC/ST/SFP Slot Optional

Distance: MMF 550m/2km,SMF 20/40/80/100/120km,

Bi-di:20/40/80/100/120km

LED indicators

PWR1: ON=Power Connected

PWR2: ON= Power Connected

FL/A: ON=Fiber Connected; Active=Data Transmitting

TL/A: ON=Copper Connected; Active= Data Transmitting

Power

Input Voltage: 12-56Vd.c., redundant power inputs

Power Consumption:≤5W

Protection: Overload Current; Reverse Polarity

Connector: Terminal Block

Environment

Operating Temperature: -40 ˚C ~+85 ˚C

Storage Temperature: -40 ˚C ~+95 ˚C

RelativeHumidity: 5-95% (no condensation)

Physical Characteristics

Housing: IP40 Protection, Aluminum Alloy

Installation: DIN-rail mounting, wall mounting(with optional kit)

Dimension: 115*81*35mm(device); 220*175*73mm(packing)

Weight: 0.30kg(device); 0.43kg(device with packing)

Standards and Certifications

EMC

CE

EMI

FCC Part 15 CLASS A

EMS

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 61000-4-2: 2009

EN 61000-4-3: 2006+A2: 2010

EN 61000-4-4: 2012

EN 61000-4-5: 2014

EN 61000-4-6: 2014

EN 61000-4-11: 2004

LVD/Safety

IEC60950-1-A1-E

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32 0.5m

Vibration

IEC 60068-2-6

Railway Traffic

EN50121-4

Order Information

Model No.

Description

IMC3100-SFP

10/100/1000M,SFP Slot

IMC3100-M05

10/100/1000MMMF,850nm,SC,550m

IMC3100-S20

10/100/1000MSMF,1310nm,SC,20km

IMC3100-A20

10/100/1000M Bi-di,TX1310/RX1550nm,SC,20km

IMC3100-B20

10/100/1000M Bi-di,TX1550/RX1310nm,SC,20km

IMC3100D-SFP

10/100/1000M,SFP Slot, DIP Switch

IMC3100D-M05

10/100/1000MMMF,850nm,SC,550m, DIP Switch

IMC3100D-S20

10/100/1000MSMF,1310nm,SC,20km, DIP Switch

IMC3100D-A20

10/100/1000M Bi-di,TX1310/RX1550nm,SC,20km, DIP Switch

IMC3100D-B20

10/100/1000M Bi-di,TX1550/RX1310nm,SC,20km, DIP Switch

Note:

1.Power supply provided by user or ordered additionally

2.SC connector as default, FC/ST as request
