10Gbps DWDM XFP Transceiver

Model NO.: XFP-D10xx-40
Delivery: FOB
Supply Ability: 5000 / Day
Country of Origin: SHENZHEN
Stock Time: 3-5 Days

Quantity:

Product Description

Features

Supports9.95Gb/s to 11.3Gb/s bit rates
Hot-pluggable XFP footprint, Built-in digital diagnose
Maximum link length of 40km with SMF
100GHz ITU, C Band DWDM Cooled EML laser and PIN photodiode
XFP MSA package with duplex LC connector
No reference clock required
Single +3.3V power supply
Power dissipation <3.5W
Compatible with RoHS
Temperature range 0 to +70°C

Applications

10GBASE-ER/EW
40km 10G Ethernet
SONET OC-192 &SDH STM 64

Standard

Compliant with XFP MSA
Compliant with SFF-8472
Compliant to IEEE 802.3ae

Description

The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10Gbps, and transmission distance up to 40km on SMF.

The transceiver module comprises a transmitter with 100GHz C Band 1528.77~1563.05nmDWDM Cooled EML laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.3	+3.6	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	-	5	85	%

Any stress beyond the maximum ratings can result in permanent damage. The device specifications are guaranteed only under the recommended operating conditions.

Recommended Operating Conditions

Parameter		Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard	Tc	-5		+70	°C
Operating Case Temperature	Industrial	Tc	-40		+85	°C
Power Supply Voltage@3.3V		Vcc	3.13	3.3	3.47	V
Power Supply Current		Icc			640	mA
Data Rate			9.95	10.3	11.3	Gbps
Fiber Length 9/125μm core SMF				40		km

Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	1528.77		1563.05	nm
Side-Mode Suppression Ratio			SMSR	30			dB
Center Wavelength Spacing					100		GHz
Average Output Power			P_out	-1		4	dBm	1
Extinction Ratio			ER	8.2			dB
Data Input Swing Differential			V_IN	120		820	mV	2
Input Differential Impedance			Z_IN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
TX Disable	Enable			0		0.8	V
Receiver
Centre Wavelength			λc	1450		1620	nm
Receiver Sensitivity						-16	dBm	3
Receiver Overload				0.5			dBm	3
LOS De-Assert			LOS_D			-18	dBm
LOS Assert			LOS_A	-32			dBm
LOS Hysteresis				0.5		4	dB
Data Output Swing Differential			V_out	340	650	850	mV	2
LOS			Fault	Vcc–0.5		VccHost	V
LOS			Normal	GND		GND+0.5	V

Notes:

1. The optical power is launched into SMF.

2.Internally AC-coupled.

3. Measured with a PRBS 2³¹-1 test pattern @9953Mbps, BER ≤1×10^-12.

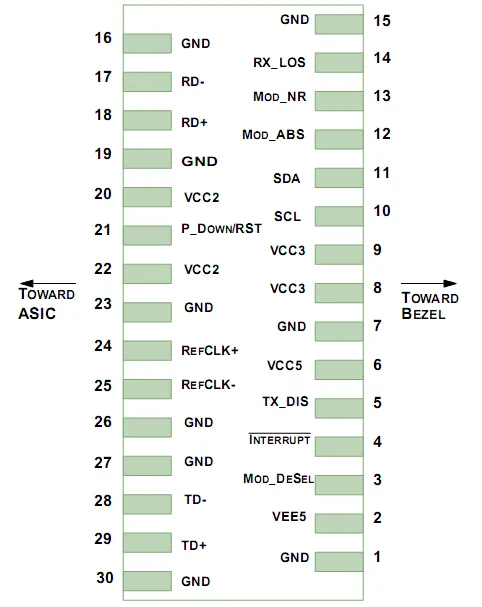

Pin Descriptions

Pin	Logic	Symbol	Name/Description	Ref
1		GND	Module Ground	1
2		VEE5	Optional –5.2 Power Supply – Not required
3	LVTTL-I	Mod-Desel	Module De-select; When held low allows the module to, respond to 2-wire serial interface commands
4	LVTTL-O	Interrupt	Interrupt (bar); Indicates presence of an important condition which can be read over the serial 2-wire interface	2
5	LVTTL-I	TX_DIS	Transmitter Disable; Transmitter laser source turned off
6		VCC5	+5 Power Supply–Not required
7		GND	Module Ground	1
8		VCC3	+3.3V Power Supply
9		VCC3	+3.3V Power Supply
10	LVTTL-I	SCL	Serial 2-wire interface clock	2
11	LVTTL- I/O	SDA	Serial 2-wire interface data line	2
12	LVTTL-O	Mod_Abs	Module Absent; Indicates module is not present. Grounded in the module.	2
13	LVTTL-O	Mod_NR	Module Not Ready;	2
14	LVTTL-O	RX_LOS	Receiver Loss of Signal indicator	2
15		GND	Module Ground	1
16		GND	Module Ground	1
17	CML-O	RD-	Receiver inverted data output
18	CML-O	RD+	Receiver non-inverted data output
19		GND	Module Ground	1
20		VCC2	+1.8V Power Supply – Not required
21	LVTTL-I	P_Down/RST	Power Down; When high, places the module in the low power stand-by mode and on the falling edge of P_Down initiates a module reset
21	LVTTL-I	P_Down/RST	Reset; The falling edge initiates a complete reset of the module including the 2-wire serial interface, equivalent to a power cycle.
22		VCC2	+1.8V Power Supply – Not required
23		GND	Module Ground	1
24	PECL-I	RefCLK+	Reference Clock non-inverted input, AC coupled on the host board – Not required	3
25	PECL-I	RefCLK-	Reference Clock inverted input, AC coupled on the host board – Not required	3
26		GND	Module Ground	1
27		GND	Module Ground	1
28	CML-I	TD-	Transmitter inverted data input
29	CML-I	TD+	Transmitter non-inverted data input
30		GND	Module Ground	1

Notes:

1. Module circuit ground is isolated from module chassis ground within the module.

2. Open collector,should be pulled up with 4.7k – 10k ohms on host board to a voltage between 3.15Vand 3.6V.

3. A Reference Clock input is not required.

Management Interface

The transceivers provide serial ID memory contents and diagnostic information about the present operating conditionsby the 2-wireserial interface(SCL, SDA).

The Module provides diagnostic information about the present operating conditions. The transceiver generates this diagnostic data by digitization of internal analog signals. Alarm/warning threshold data is written during device manufacture. Received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring all are implemented.

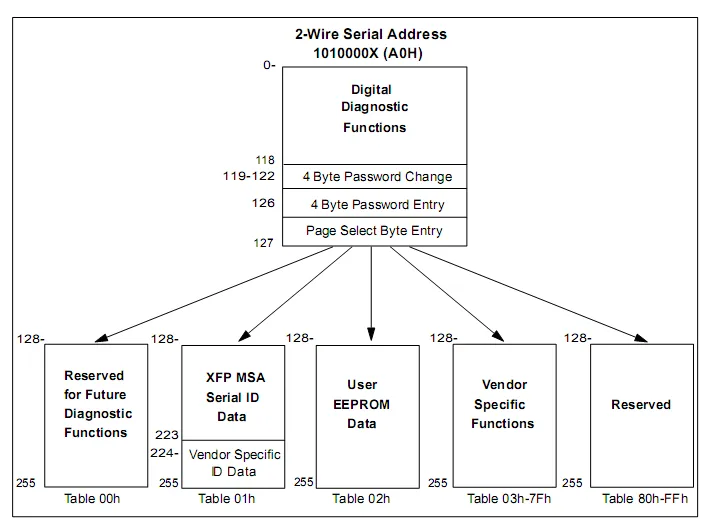

The digital diagnostic memory map specific data field defines as following.

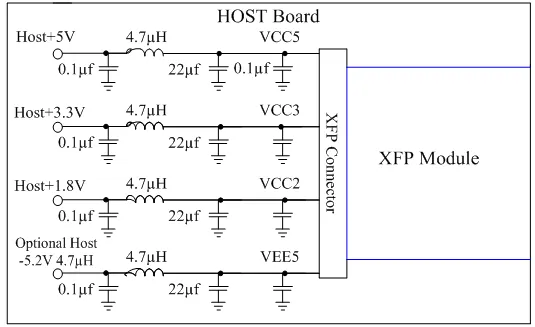

Recommended Host Board Power Supply Circuit

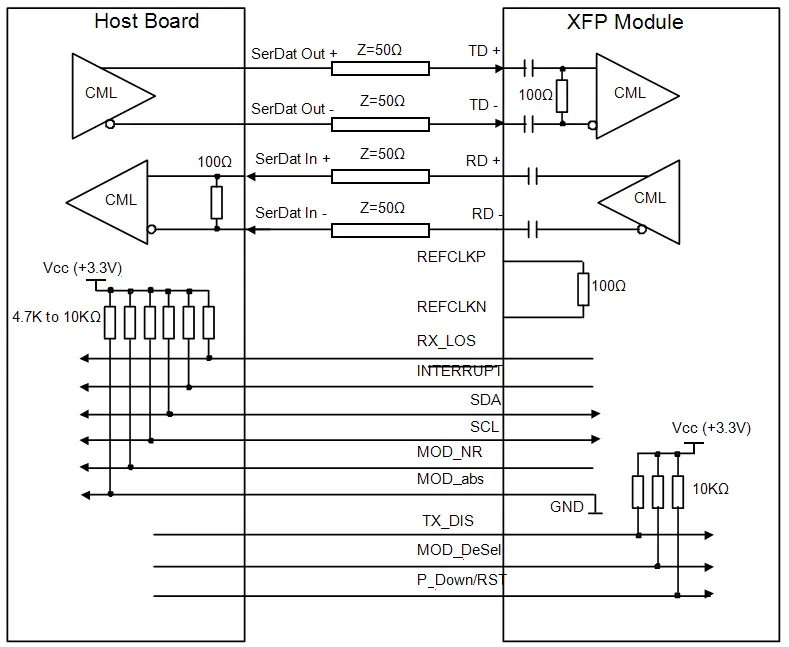

Recommended High-speed Interface Circuit

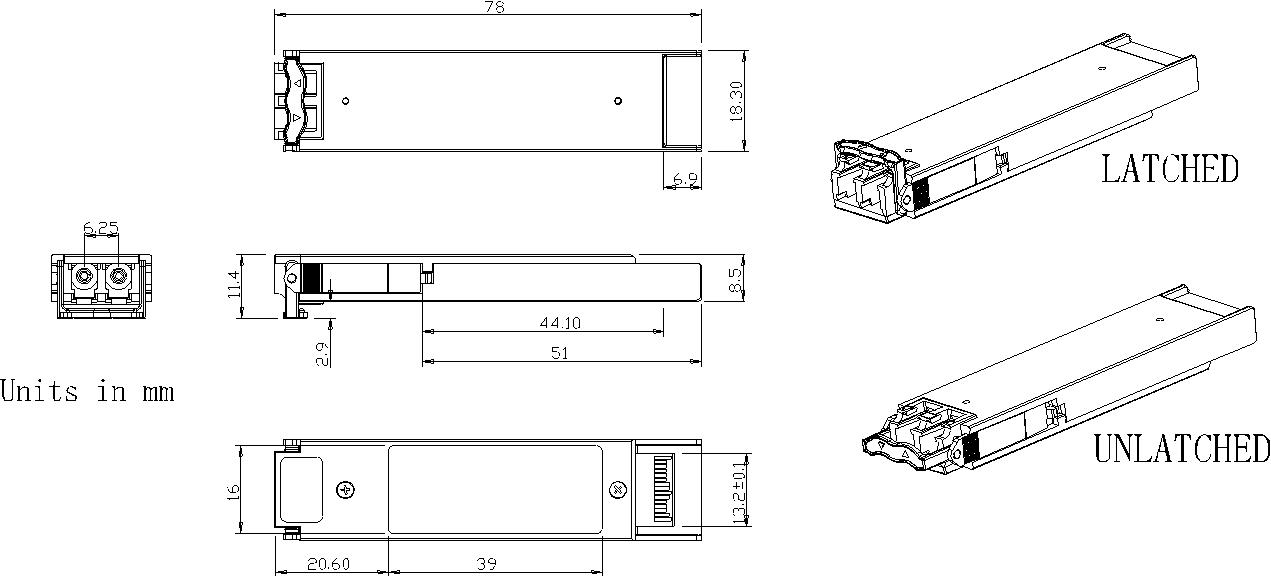

Mechanical Dimensions

Ordering information

Model No.	Product Description
XFP-D10xxL-40	10Gbps, 1528.77~1563.05nmDWDM,Single Mode, 40km, 0 ~ +70ºC

λCWavelength Guide
ITU Channel Product Code	Frequency (THz)	Wavelength	ITU Channel Product Code	Frequency (THz)	Wavelength
17	191.7	1563.86	40	194.0	1545.32
18	191.8	1563.04	41	194.1	1544.52
19	191.9	1562.23	42	194.2	1543.73
20	192.0	1561.41	43	194.3	1542.93
21	192.1	1560.60	44	194.4	1542.14
22	192.2	1559.79	45	194.5	1541.34
23	192.3	1558.98	46	194.6	1540.55
24	192.4	1558.17	47	194.7	1539.76
25	192.5	1557.36	48	194.8	1538.97
26	192.6	1556.55	49	194.9	1538.19
27	192.7	1555.74	50	195.0	1537.40
28	192.8	1554.94	51	195.1	1536.61
29	192.9	1554.13	52	195.2	1535.82
30	193.0	1553.32	53	195.3	1535.04
31	193.1	1552.52	54	195.4	1534.25
32	193.2	1551.72	55	195.5	1533.46
33	193.3	1550.92	56	195.6	1532.68
34	193.4	1550.11	57	195.7	1531.89
35	193.5	1549.32	58	195.8	1531.12
36	193.6	1548.51	59	195.9	1530.33
37	193.7	1547.71	60	196.0	1529.55
38	193.8	1546.92	61	196.1	1528.77
39	193.9	1546.12	-	-	-
