Features
- Compatible with XENPAK MSA
- Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps
- Transmission Distance up to 10km(SMF)
- SC Duplex Optical Connector
- SC Receptacle 1310nm DFB Laser
- Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
- Management and control via MDIO 2-wire interface
- Power Supply :+3.3V, APS(+1.2V)
- Power Dissipation 4W Maximum
- Diagnostic Optics Monitoring
- Temperature Range: 0~ 70 °C
- ROHS Compatible
Applications
- 10GE Ethernet switches and routers
- 10GE Core-routers
- 10GE Storage
- Other 10Gbps Ethernet Transmission System
Product Description
TheXENPAK-10G-LR is a highly integrated,Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with an uncooled directly modulated 1310nm DFB Laser. The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
Absolute Maximum Ratings
Parameter | Symbol | Min | Max | Unit | Ref. |
Storage Ambient Temperature Range | | -40 | +85 | °C | non condensing |
Powered case Temperature Range | | 0 | +70 | °C | non condensing |
Adaptable Power Supply (APS) | Vapsense | 0 | 1.5 | V | Voltage @ Pin APS Sense |
Supply Voltage Range @ 3.3V | Vcc3 | -0.5 | 4.0 | V | |
Recommended Operating Conditions
Parameter | Symbol | Min | Typical | Max | Unit |
Operating Case Temperature | Tc | 0 | | +70 | °C |
Power Supply Voltage | VCC3 | 3.14 | 3.3 | 3.47 | V |
VAPS | 1.152 | 1.2 | 1.248 | |
Power Supply Current | PD | | 3.5 | 4 | W |
Transmitter Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Operating Range | | | | 10 | Km | |
Operating Date Rate | | | 10.3125 | | Gb/s | |
Average Optics Power | Po | -8.2 | | 0.5 | dBm | |
Input Centre Wavelength | λ | 1260 | 1310 | 1355 | nm | |
SMSR. | SWSR | 30 | | | dB | |
Extinction Ratio | ER | 3.5 | | | | |
Optical Modulation Amplitude | OMA | 500 | | | µW | |
Transmitter and Dispersion Penalty | TDP | | | 3.2 | dB | |
Receiver Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Operating Date Rate | | | 10.3125 | | Gb/s | |
Average Optics Power | Po | 0.5 | | | dBm | |
Sensitivity in OMA | OMA0 | | | -12.6 | dBm | |
Stressed Sensitivity in OMA | OMAst | | | -10.3 | dBm | |
Sensitivity MINI | Pmin | | | -14.4 | dBm | 1 |
Note :
1. Measured at 10.3125Gb/s,Non-framed PRBS2^31-1,NRZ
XAUI I/O Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
XAUI Date Rate | DR | | 3.125 | | Gb/s | |
XAUI Baud Rate Tolerance | | -100 | | +100 | ppm | Relative Tolerance |
Differential Input Voltage Swing | | 220 | | 1600 | mv | 8B/10B Coded Input Signal |
Differential Output Voltage Swing | | 800 | | 1600 | mVp-p | RLOAD = 100Ω ± 5% |
Differential Input Impedance | | 80 | 100 | 120 | Ω | |
Total Output Jitter | TJXAUI | | | 0.35 | UI | no pre-equalization |
Total Deterministic Output Jitter | DJXAUI | | | 0.17 | UI | no pre-equalization |
Signal Specifications – Electrical
Parameter | Symbol | Min | Typ | Max | Units |
1.2 V CMOS |
Input High Voltage | VIL(MAX) | - | - | 0.36 | V |
Input Low Voltage | VIH(MIN) | 0.84 | - | 1.25 | V |
Capacitance | | - | - | 320 | pF |
Pull Up Resistance | Rpull | 10k | - | 22k | ohm |
MDIO I/O |
Output Low Voltage | VOL | -0.3 | - | 0.2 | V |
Output Low Current | IOL | - | - | 4 | mA |
Input High Voltage | VIH | 0.84 | - | 1.5 | V |
Input Low Voltage | VIL | -0.3 | - | 0.36 | V |
Pull-up Supply Voltage | VPULL | 1.14 | 1.2 | 1.26 | |
Input Capacitance | CIN | - | - | 10 | Pf |
Load Capacitance | CLOD | - | - | 470 | Pf |
External Pull-up Resistance | EPULL | 200 | - | - | Ohm |
Pin Definitions
Pin No | Name | Dir | Function | Notes |
1 | GND | | Electrical Ground | 1 |
2 | GND | | Electrical Ground | 1 |
3 | GND | | Electrical Ground | 1 |
4 | 5.0V | | Power | 2 |
5 | 3.3V | | Power | 2 |
6 | 3.3V | | Power | 2 |
7 | APS =1.2V | | Adaptive Power Supply | 2 |
8 | APS =1.2V | | Adaptive Power Supply | 2 |
9 | LASI | | Open Drain Compatible 10K-22K pull up on host. Logic High: Normal Operation Logic Low: LASI Asserted | 3 |
10 | RESET | I | Open Drain compatible. 10-22K pull-up on transceiver Logic high = Normal operation Logic low = Reset Minimum reset assert time 1 ms | 3 |
11 | VEND SPECIFIC | | Vendor Specific Pin. Leave unconnected when not in use. | 6 |
12 | TX ON/OFF | I | Open Drain compatible. 10-22K pull-up on transceiver Logic high = Transmitter On (capable) Logic low = Transmitter Off (always) | 3 |
13 | RESERVED | | Reserved | 3 |
14 | MOD DETECT | O | Pulled low inside module through 1k | |
15 | VEND SPECIFIC | | Vendor Specific Pin. Leave unconnected when not in use. | 6 |
16 | VEND SPECIFIC | | Vendor Specific Pin. Leave unconnected when not in use. | 6 |
17 | MDIO | I/O | Management Data IO | 3, 4 |
18 | MDC | I | Management Data Clock | 3, 4 |
19 | PRTAD4 | I | Port Address Bit 4 (Low = 0) | 3 |
20 | PRTAD3 | I | Port Address Bit 3 (Low = 0) | 3 |
21 | PRTAD2 | I | Port Address Bit 2 (Low = 0) | 3 |
22 | PRTAD1 | I | Port Address Bit 1 (Low = 0) | 3 |
23 | PRTAD0 | I | Port Address Bit 0 (Low = 0) | 3 |
24 | VEND SPECIFIC | | Vendor Specific Pin. Leave unconnected when not in use. | 6 |
25 | APS SET | | Feedback input for APS | |
26 | RESERVED | | Reserved for Avalanche Photodiode use. | 6 |
27 | APS SENSE | | APS Sense Connection | |
28 | APS =1.2V | | Adaptive Power Supply | 2 |
29 | APS =1.2V | | Adaptive Power Supply | 2 |
30 | 3.3V | | Power | 2 |
31 | 3.3V | | Power | 2 |
32 | 5.0V | | Power | 2 |
33 | GND | | Electrical Ground | 1 |
34 | GND | | Electrical Ground | 1 |
35 | GND | | Electrical Ground | 1 |
36 | GND | | Electrical Ground | 1 |
37 | GND | | Electrical Ground | 1 |
38 | RESERVED | | Reserved | |
39 | RESERVED | | Reserved | |
40 | GND | | Electrical Ground | 1 |
41 | RX LANE0+ | O | Module XAUI Output Lane 0+ | 5 |
42 | RX LANE0- | O | Module XAUI Output Lane 0- | 5 |
43 | GND | | Electrical Ground | 1 |
44 | RX LANE1+ | O | Module XAUI Output Lane 1+ | 5 |
45 | RX LANE1- | O | Module XAUI Output Lane 1- | 5 |
46 | GND | | Electrical Ground | 1 |
47 | RX LANE2+ | O | Module XAUI Output Lane 2+ | 5 |
48 | RX LANE2- | O | Module XAUI Output Lane 2- | 5 |
49 | GND | | Electrical Ground | 1 |
50 | RX LANE3+ | O | Module XAUI Output Lane 3+ | 5 |
51 | RX LANE3- | O | Module XAUI Output Lane 3- | 5 |
52 | GND | | Electrical Ground | 1 |
53 | GND | | Electrical Ground | 1 |
54 | GND | | Electrical Ground | 1 |
55 | TX LANE0+ | I | Module XAUI Input Lane 0+ | 5 |
56 | TX LANE0- | I | Module XAUI Input Lane 0- | 5 |
57 | GND | | Electrical Ground | 1 |
58 | TX LANE1+ | I | Module XAUI Input Lane 1+ | 5 |
59 | TX LANE1- | I | Module XAUI Input Lane 1- | 5 |
60 | GND | | Electrical Ground | 1 |
61 | TX LANE2+ | I | Module XAUI Input Lane 2+ | 5 |
62 | TX LANE2- | I | Module XAUI Input Lane 2- | 5 |
63 | GND | | Electrical Ground | 1 |
64 | TX LANE3+ | I | Module XAUI Input Lane 3+ | 5 |
65 | TX LANE3- | I | Module XAUI Input Lane 3- | 5 |
66 | GND | | Electrical Ground | 1 |
67 | RESERVED | | Reserved | |
68 | RESERVED | | Reserved | |
69 | GND | | Electrical Ground | 1 |
70 | GND | | Electrical Ground | 1 |
Notes:
1) Ground connections are common for TX and RX.
2) All connector contacts are rated at 0.5A nominal.
3) 1.2V CMOS compatible.
4) MDIO and MDC timing must comply with IEEE802.3ae, Clause 45.3
5) XAUI output characteristics should comply with IEEE802.3ae Clause 47.
6) Transceivers will be MSA compliant when no signals are present on the vendor specific pins.

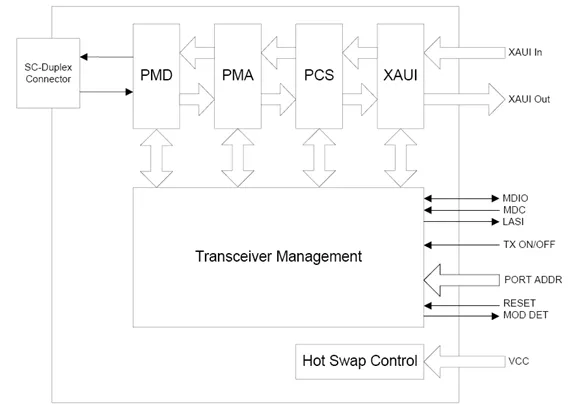

Figure1. Functional Diagram of Typical XENPAK Style Transceiver

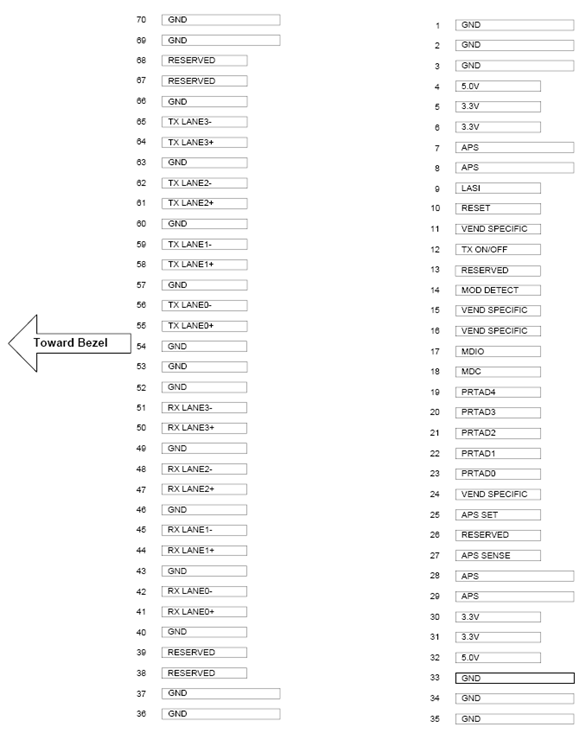

Figure2.Electrical Pin-out Details

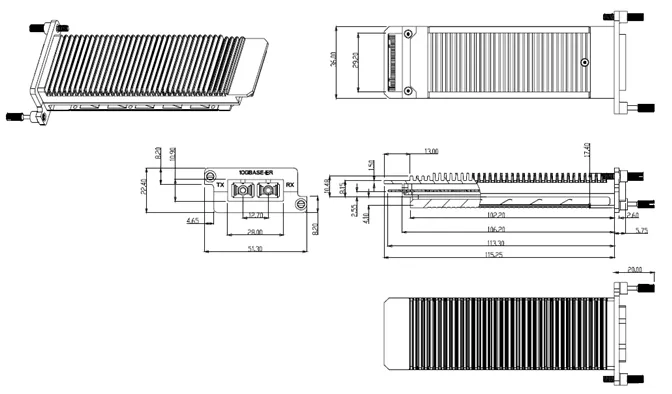

Mechanical Dimensions

Ordering information
Model No. | Product Description |
XENPAK-10G-LR | 10.3125Gbps, 1310nm, XENPAK 10Km, 0ºC ~ +70ºC |
