4.25Gbps SFP Optical Transceiver

Model NO.: SFP-4215L-40
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 5000 piece / Day
Country of Origin: SHENZHEN
Stock Time: 5 Days

Quantity:

Product Description

Features

Supports up to 4.25Gbps bit rates
Hot-pluggable SFP+ footprint
1550nm DFB laser and PIN photodiode, Up to 40km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Standard:0 to +70°C
Industrial: -40 to +85°C

Applications

4Gbps Optical systems
1x/2x/4x Fiber channel systems
Other Optical links

Description

The SFP transceivers are high performance, cost effective modulessupporting data rate of 4.25Gbps and 40km transmission distance with SMF.

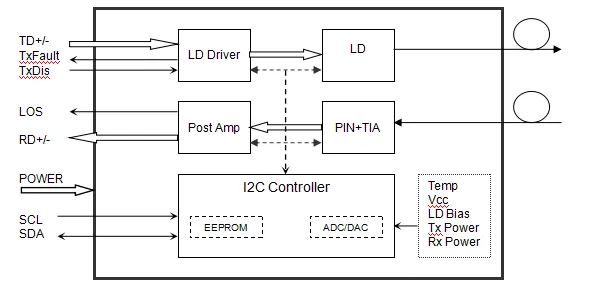

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Thetransceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	-	5	85	%

Recommended Operating Conditions

Parameter		Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard	Tc	0		+70	°C
	Extended		-20		+80	°C
	Industrial		-40		+85	°C
Power Supply Voltage		Vcc	3.135	3.30	3.465	V
Power Supply Current		Icc			350	mA
Data Rate			1.0	4.25	4.5	Gbps

Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	1530	1550	1570	nm
Spectral Width（-20dB）			Δλ			1	nm
Side-Mode Suppression Ratio			SMSR	30	-		dB
Average Output Power			P_out	0		+4	dBm	1
Extinction Ratio			ER	5			dB
Data Input Swing Differential			V_IN	180		850	mV	2
Input Differential Impedance			Z_IN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
TX Disable	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
TX Fault	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	1260		1600	nm
Receiver Sensitivity						-17.5	dBm	3
Receiver Overload				-1			dBm	3
LOS De-Assert			LOS_D			-19	dBm
LOS Assert			LOS_A	-30			dBm
LOS Hysteresis				0.5			dB
Data Output Swing Differential			V_out	300		900	mV	4
LOS			High	2.0		Vcc	V
LOS			Low			0.8	V

Notes:

1. The optical power is launched into SMF.

2. PECL input, internally AC-coupled and terminated.

3. Measured with a PRBS 2³¹-1 test pattern @4250Mbps, BER ≤1×10^-12.

4. Internally AC-coupled.

Timing and Electrical

Parameter	Symbol	Min	Typical	Max	Unit
Tx Disable Negate Time	t_on			1	ms
Tx Disable Assert Time	t_off			10	µs
Time To Initialize, including Reset of TxFault	t_init			300	ms
Tx Fault Assert Time	t_fault			100	µs
Tx Disable To Reset	t_reset	10			µs
LOS Assert Time	t_loss_on			100	µs
LOS De-assert Time	t_loss_off			100	µs
Serial ID Clock Rate	f_serial_clock		100	400	KHz
MOD_DEF (0:2)-High	V_H	2		Vcc	V
MOD_DEF (0:2)-Low	V_L			0.8	V

Diagnostics

Parameter	Range	Unit	Accuracy	Calibration
Temperature	0 to +70	°C	±3°C	Internal
	-20 to +80
	-40 to +85
Voltage	3.0 to 3.6	V	±3%	Internal
Bias Current	0 to 100	mA	±10%	Internal
TX Power	-2 to+4	dBm	±3dB	Internal
RX Power	-20 to-1	dBm	±3dB	Internal

Digital Diagnostic Memory Map

The transceivers provide serial ID memory contents and diagnostic information about the present operating conditions by the 2-wire serial interface (SCL, SDA).

The diagnostic information with internal calibration or external calibration all are implemented,including received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring.

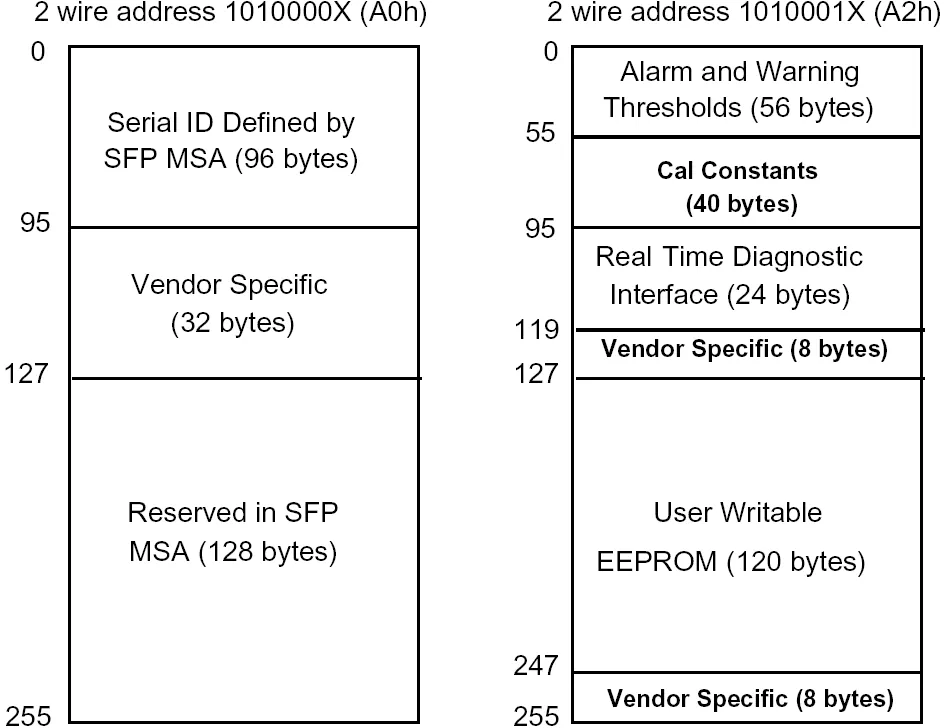

The digital diagnostic memory map specific data field defines as following.

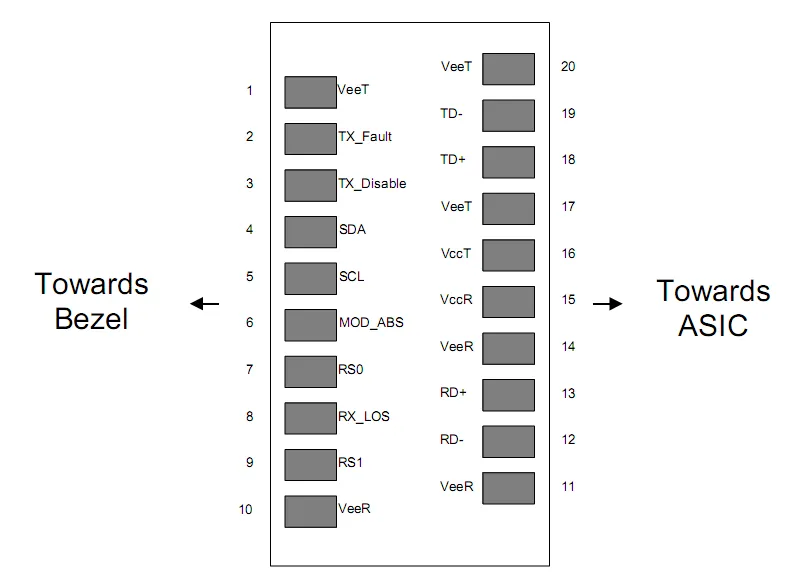

Pin Descriptions

Pin	Signal Name	Description	Plug Seq.	Notes
1	V_EET	Transmitter Ground	1
2	TX FAULT	Transmitter Fault Indication	3	Note 1
3	TXDISABLE	Transmitter Disable	3	Note 2
4	SDA	SDA Serial Data Signal	3
5	SCL	SCL Serial Clock Signal	3
6	MOD_ABS	Module Absent. Grounded within the module	3
7	RS0	Not Connected	3
8	LOS	Loss of Signal	3	Note 3
9	RS1	Not Connected	3
10	V_EER	Receiver ground	1
11	V_EER	Receiver ground	1
12	RD-	Inv. Received Data Out	3	Note 4
13	RD+	Received Data Out	3	Note 4
14	V_EER	Receiver ground	1
15	V_CCR	Receiver Power Supply	2
16	V_CCT	Transmitter Power Supply	2
17	V_EET	Transmitter Ground	1
18	TD+	Transmit Data In	3	Note 5
19	TD-	Inv. Transmit Data In	3	Note 5
20	V_EET	Transmitter Ground	1

Notes:

Plug Seq.: Pin engagement sequence during hot plugging.

1) TX Fault is an open collector output, which should be pulled up with a 4.7k~10kΩresistor on the host board to a voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; Logic 1 indicates a laser fault of some kind. In the low state, the output will be pulled to less than 0.8V.

2) Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.

3) LOS is open collector output. Should be pulled up with 4.7k~10kΩ on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

4) RD-/+: These are the differential receiver outputs. They are internallyAC-coupled 100 differential lines which should be terminated with 100Ω (differential) at the user SERDES.

5) TD-/+: These are the differential transmitter inputs. They are internallyAC-coupled, differential lines with 100Ω differential termination inside the module.

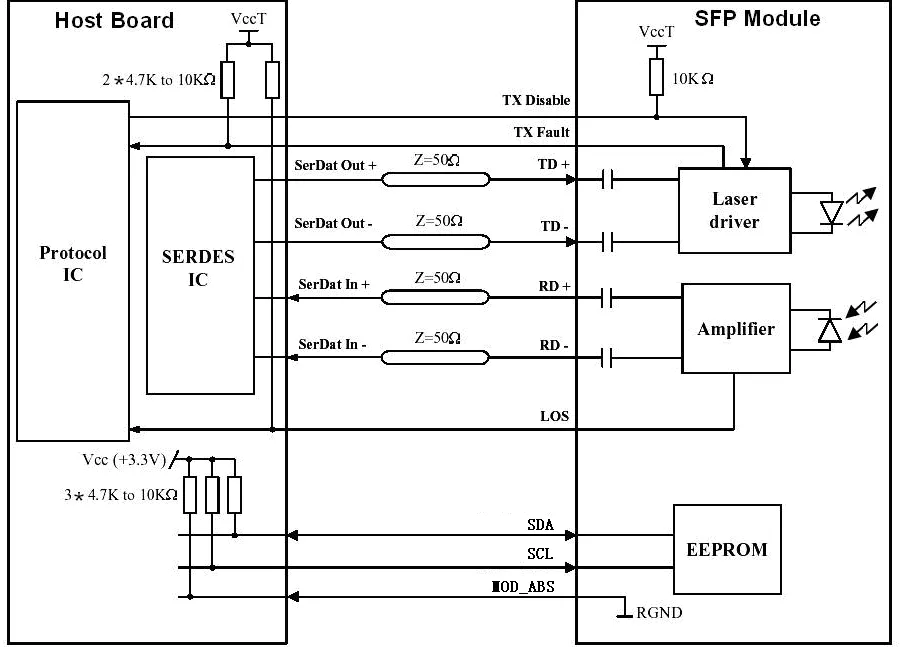

Recommended Interface Circuit

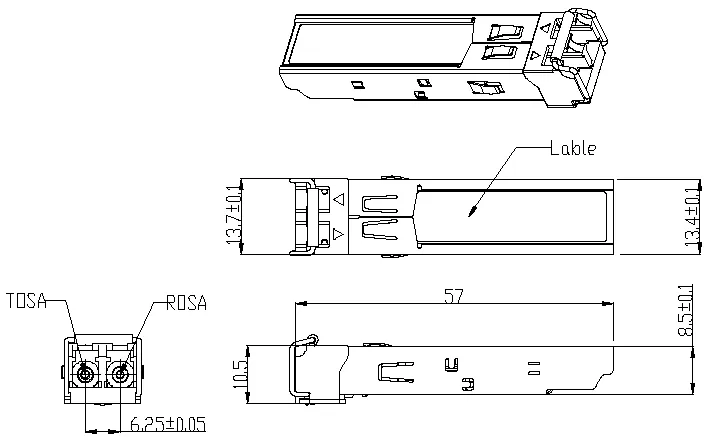

Mechanical Dimensions

Ordering information

Model No.	Product Description
SFP-4215L-40	4.25Gbps, 1550nm,40km, 0ºC ~ +70ºC, With DDM
SFP-4215L-40I	4.25Gbps, 1550nm,40km,-40ºC ~ +85ºC, With DDM
