Fiber Optic Drop Cable

Model NO.: Drop-Cable-Patch-Cord
Delivery:: EXW/FOB
Minimum order quantity:: 10 pieces
Country of Origin:: CHINA
Stock Time:: 3-5 Days

Quantity:

Product Description
Application Description

Overview

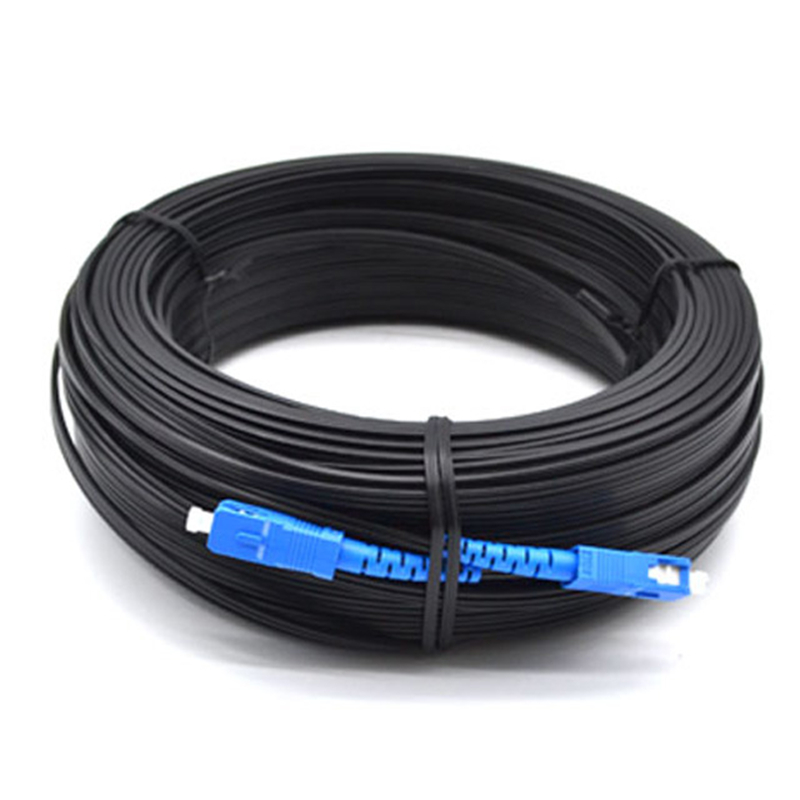

Drop Cable Patch Cord, with Connector pre-terminated on both ends. The operator could directly plug the cable to the adapter without splicing in field, which will decrease the loss of the optical distribution network, as well as decrease the operation time in the subscriber end.

Features

Pre-terminated SC/PC or SC/APC connectors
Pre-terminated FC/PC or FC/APC connectors
Low insertion loss, high return loss
Widely applied in Fiber to the home solutions

Applications

FTTH
Light communication system
Common antenna TV system

Specification

Item	Specification
	Single-mode	Multi-mode
return loss	UPC≥50dB,APC≥60dB	≥40dB
Insertion loss	≤0.3dB
Repeatability	≤0.1dB
Interchange	≤0.2dB
Fiber Count	1/2 Core
Durability	≥1000matings
Operating Temperature	-40～+85℃

Category		Specification
Fiber Cable	Fiber Type	G657A or G652
	Jacket Color	Black or White
	Jacket Material	LSZH or PVC
	Jacket Dimension	(5.1±0.1)mm X (3.0±0.1)mm
Strength Member		FRP& Steel Wire
Connector type		SC、FC、LC or Others
