Overview
The E2000 Connector/LX-5 is like a LC but with a shutter over the end of the fiber.
Features
- Superior qualified standard PC/UPC/APC polishing
- Compliant with Telcordia GR-326-Core, TIA/EIA and IEC61300
- 100% optic test (Insertion Loss & Return Loss)
- 0.9mm, 2.0mm and 3.0mm cable optional
- Simplex / Duplex Optional
- Flexible boot are available
- PVC/LSZH
Applications
- High Speed and volume Fiber Optic Transmission Systems
- CATV Networks
- LAN
- Fiber Optic Instrumentation
Specification
Patch Cord/Pigtail Spec | |||
Type | Single mode(UPC) | Single mode(APC) | Multi-mode (PC) |
Insertion loss | ≤0.2 dB | ≤0.2 dB | ≤0.2 dB |
Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
Repeatability | ≤0.1dB | ||
Durability | ≥1000matings | ||
Operating Temperature | -40 ºC to +80 ºC | ||
TensileStrength(N) | ≥90N (φ3),≥70N (φ2) | ||

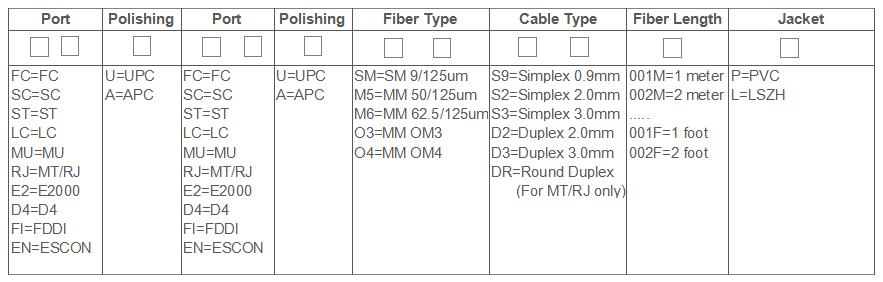

Order Information
