Overview

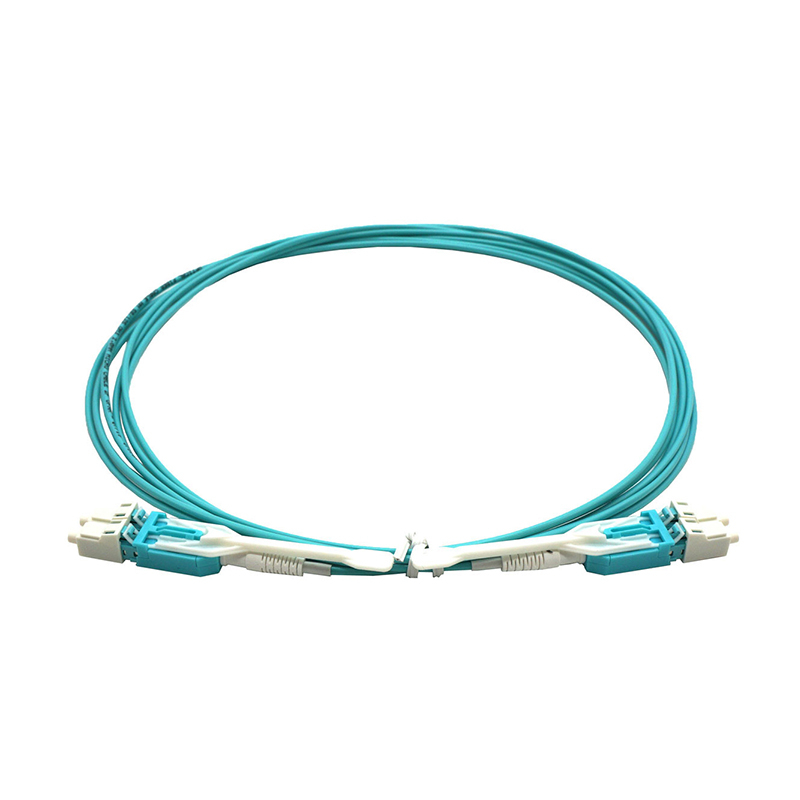

AOALC Uniboot style patchcords with integrated push/pull tab are the ideal solution for high density patching environments.The unique push pull tab allows easy finger access and a secure holding fixture for any patching or handling process. The attractive, low profile uniboot connector design utilises round 2 mm duplex cord for neater and denser cable management. For multimode OM4 and OM3 applications, low loss connectors are used to offer the lowest possible channel loss.
Features
- Integrated push pull tab for ease of access and handling
- Low profile design reduces patching footprint
- Round 2 mm DX fibre design minimises patch cable volume and enhances looming neatness
- Low loss, high performance multimode connectors to minimise channel losses
Applications
- Termination enclosure to equipment patching
- Equipment to equipment patching
- Cross-connect patching (for high density patching see also AOA’s MTP Low Loss Cabling System)
Specification
Patch Cord/Pigtail Spec |
Type | Single mode(UPC) | Single mode(APC) | Multi-mode (PC) |
Insertion loss | ≤0.2 dB | ≤0.2 dB | ≤0.2 dB |
Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
Repeatability | ≤0.1dB |
Durability | ≥1000matings |
Operating Temperature | -40 ºC to +80 ºC |
TensileStrength(N) | ≥90N (φ3),≥70N (φ2) |
