Overview

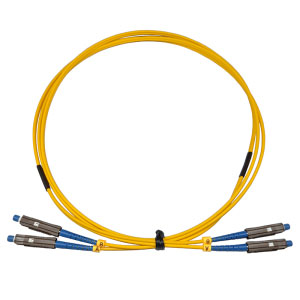

MU is a small form factor SC. It has the same push/pull style, but can fit 2 channels in the same footprint of a single SC. MU was developed by NTT.
The MU connector looks a miniature SC with a 1.25 mm ferrule. It is a popular connector type in Japan
Features
- Superior qualified standard PC/UPC/APC polishing
- Compliant with Telcordia GR-326-Core, TIA/EIA and IEC61300
- 100% optic test (Insertion Loss & Return Loss)
- 0.9mm, 2.0mm and 3.0mm cable optional
- Simplex / Duplex Optional
- Flexible boot are available
- PVC/LSZH
Applications
- High Speed and volume Fiber Optic Transmission Systems
- CATV Networks
- LAN
- Fiber Optic Instrumentation
Specification
Patch Cord/Pigtail Spec | ||
Type | Single mode(UPC) | Multi-mode (PC) |
Insertion loss | ≤0.2 dB | ≤0.2 dB |
Return Loss | ≥45 dB | ≥35 dB |
Repeatability | ≤0.1dB | |
Durability | ≥1000matings | |
Operating Temperature | -40 ºC to +80 ºC | |
TensileStrength(N) | ≥90N (φ3),≥70N (φ2) | |
Order Information
