Model NO.
SC-SC
Delivery:
EXW/FOB
Minimum order quantity:
10 pieces
Country of Origin:
CHINA
Stock Time:
3-5 Days
Quantity:

Overview

SCFiber Optic Patch Cord stands for Subscriber Connector- a general purpose push/pull style connector developed by NTT. SC has an advantage in duplexibility to support send/receive channels. SC Connectors are frequently used for newer network applications.

The square, snap-in connector latches with a simple push-pull motion and is keyed. They feature a 2.5mm ferrule and molded housing for protection.

Features

  • Superior qualified standard PC/UPC/APC polishing
  • Compliant with Telcordia GR-326-Core, TIA/EIA and IEC61300
  • 100% optic test (Insertion Loss & Return Loss)
  • 0.9mm, 2.0mm and 3.0mm cable optional
  • Simplex / Duplex Optional
  • Flexible boot are available
  • PVC/LSZH

Applications

  • High Speed and volume Fiber Optic Transmission Systems
  • CATV Networks
  • LAN
  • Fiber Optic Instrumentation

Specification

Patch Cord/Pigtail Spec

Type

Single mode(UPC)

Single mode(APC)

Multi-mode (PC)

Insertion loss

0.2 dB

0.2 dB

0.2 dB

Return Loss

50 dB

60 dB

35 dB

Repeatability

0.1dB

Durability

1000matings

Operating Temperature

-40 ºC to +80 ºC

TensileStrength(N)

90N (φ3),70N (φ2)

Fiber Cable Connectors Type

SC UPC SM SX

SC UPC SM DX

SC UPC MM SX

SC APC SX

SC APC DX

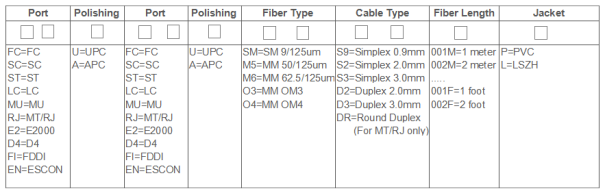

Order Information
