Model NO.
ATB8602
Delivery:
FOB/EXW
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Day
Country of Origin:
china
Stock Time:
3-5 Days
Quantity:

Overview

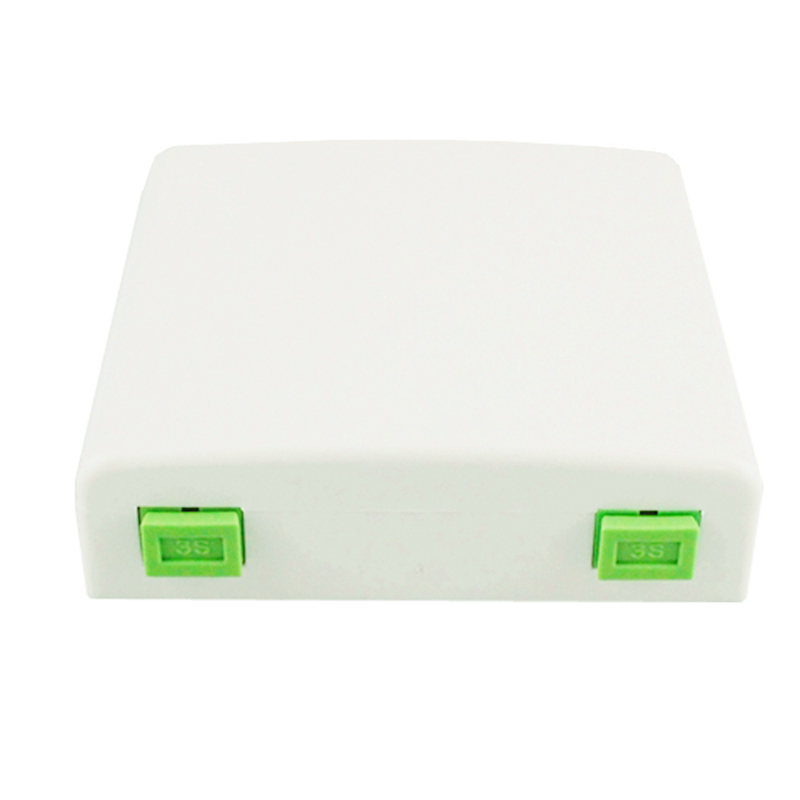

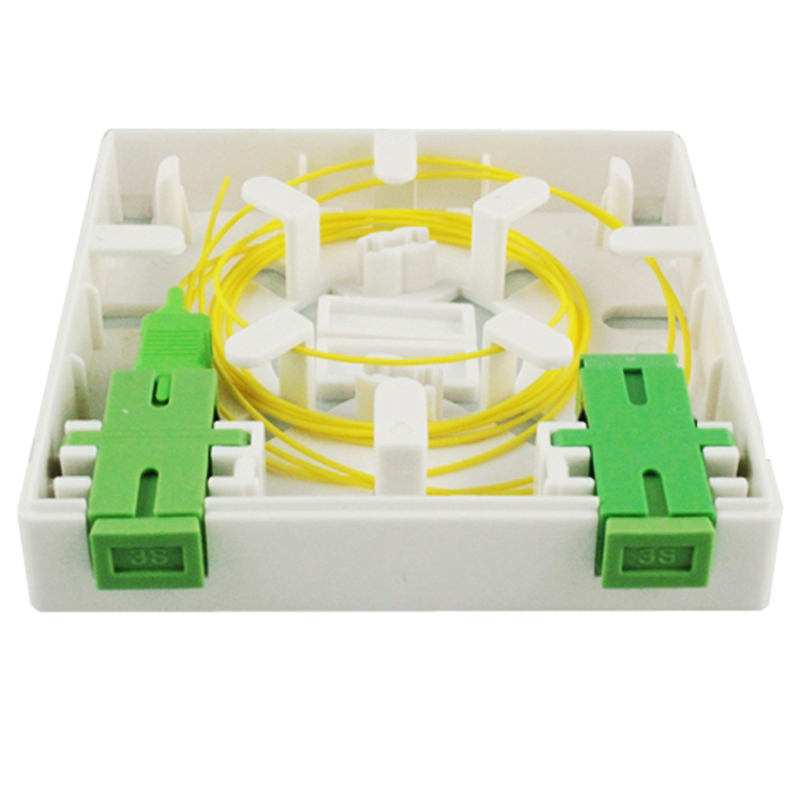

ATB8602 is an indoor terminal applied in the FTTX network to connect the drop cable and ONU devices through fiber port. ATB8602 covers the capacity of 1core, 2cores and 4 cores and supports splicing, mechanical connection and FMC, wall mounted installation.

Features

  • Excellent ergonomics design, graceful appearance and convenience operation
  • Plug fiber without having to open the shell, easily accessible fiber operation
  • Vertically downward port to avoid causing personal injury
  • White color, graceful style and good adaptability to environment.
  • Fiber cable inlets in every direction, supports the cable inlets for different scenarios.
  • Friendly operation interface, high reliability
  • Low construction cost

Application

  • Widely used in FTTH access network
  • Telecommunication
  • CATV Networks
  • Data Communication Network

Item

Specifications

Size (H×W×D)mm

85×85×21

Color

White

Material

ABS

Capacity (cores)

1,2,4

Connect Models

Splicing,Mechanical Connector, FMC

Installation Models

Wall Mounted

Protective Level

IP4X

Pigtail

G.657 Ф0.9mm,0.5m Or customer request

Drop cable (Flat)

Indoor Flat Drop cable 2mm×3mm

drop cable (Round)

Φ5mmΦ7mm

Curvature Radius (mm)

≥15

Working Temp.

-25℃~+60

Storage Temp.

-40℃~+70

Humidity

93%(+30)

Air Pressure

70KPa106KPa

Standards

ITU-T L.51; JB-T8593-1997 EN 60950-1;UL94;IEC 60529

Technical Indexes

Order Information

Model No.

Adaptor

Pigtail

Capacity (Core)

ATB8602

-

-

1/2

ATB8602-1/SC/U/S

1x SC/UPC SX

1x SC/UPC SX 0.9mm

1

ATB8602-1/SC/A/S

1x SC/APC SX

1x SC/APC SX 0.9mm

1

ATB8602-1/LC/U/D

1x LC/UPC DX

2x LC/UPC SX 0.9mm

2

ATB8602-1/LC/A/D

1x LC/APC DX

2x LC/APC SX 0.9mm

2

ATB8602-2

-

-

2/4

ATB8602-2/SC/U/S

2x SC/UPC SX

2x SC/UPC SX 0.9mm

2

ATB8602-2/SC/A/S

2x SC/APC SX

2x SC/APC SX 0.9mm

2

ATB8602-2/LC/U/D

2x LC/UPC DX

4x LC/UPC SX 0.9mm

4

ATB8602-2/LC/A/D

2x LC/UPC DX

4x LC/APC SX 0.9mm

4
