Fiber Termination Box
Fiber Termination Box
Fiber Termination Box
Fiber Termination Box
Fiber Termination Box
Fiber Termination Box
Fiber Termination Box
Fiber Termination Box
Fiber Termination Box
Fiber Termination Box
Fiber Termination Box

Fiber Termination Box

Model NO.
FDB-32D
Delivery
FOB/EXW
Minimum order quantity
1 piece
Supply Ability
2000 piece / Day
Country of Origin
china
Stock Time
3-5 Days
Quantity:

Overview

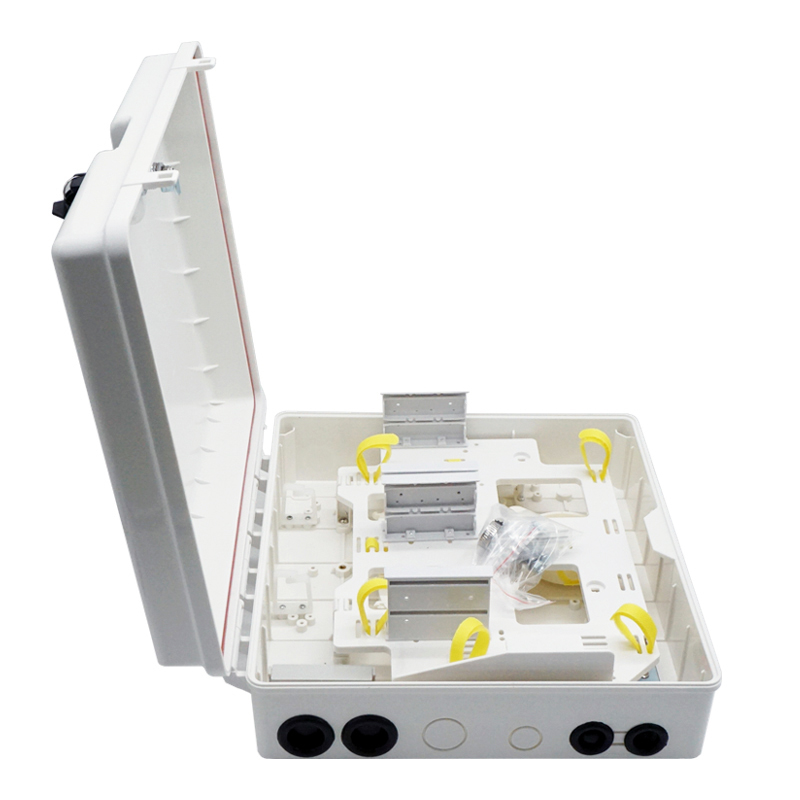

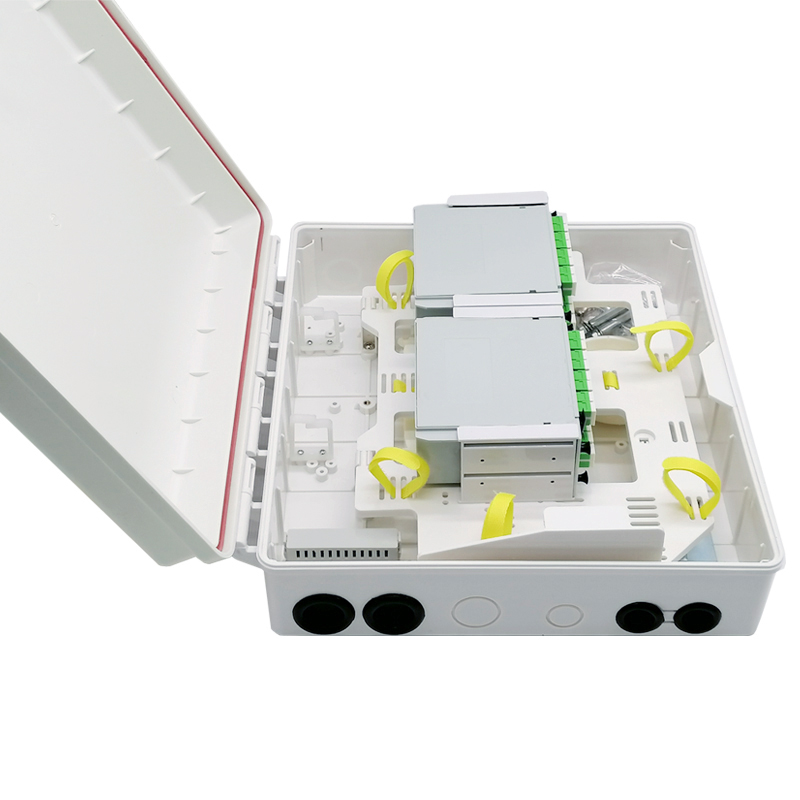

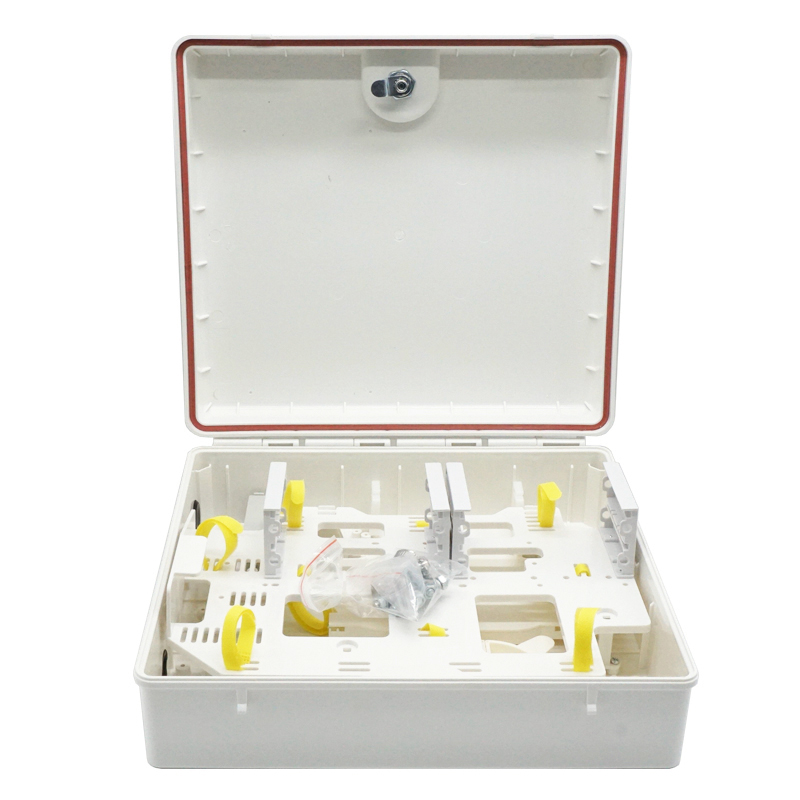

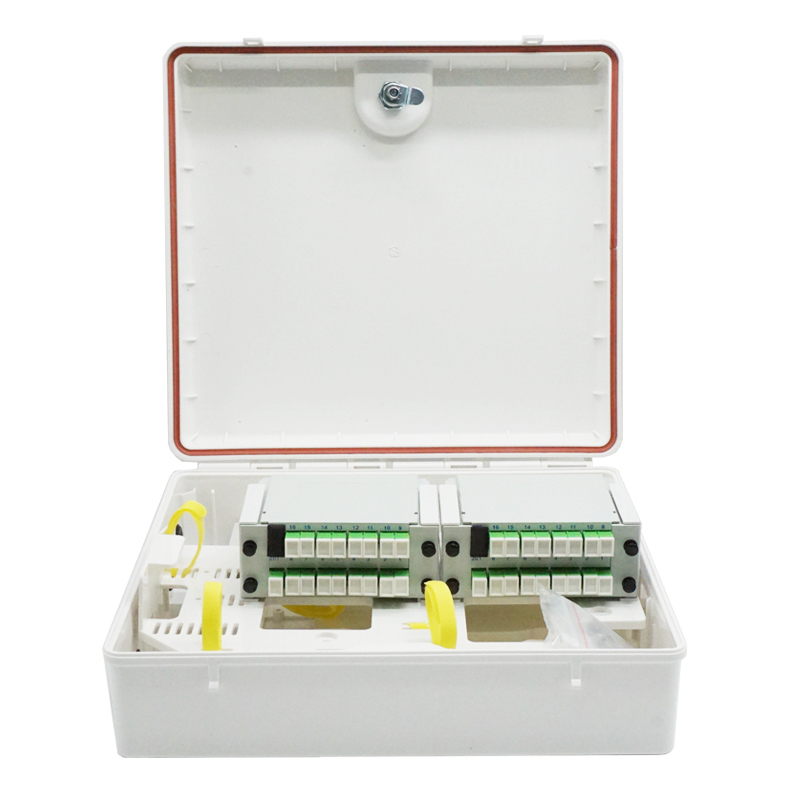

FDB-32D Series32 ports Splitter Distribution Box withcassette-style splitters, suitable for outdoor, corridor or weak current silo, can be used for local cable or drop cable end and sub-distribution; also it can be used for protective connection of cable and layout pigtails, and fiber optic terminations of optic access network, with the advantage of light, small, convenience of transportation and installation, and capacity of 16 cores or 32 cores.

Features

  • Support termination, splicing and storage for fiber optic cable systems
  • Suitable for FOUR cassette PLC splitter of 1*8 or TWO cassette PLC splitter of 1*16
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Compact structure and perfect fiber management
  • Applicable for wall-mounted and compatible with flush-mount outlet.
  • IP65 waterproof and dust-proof plastic case

Application

  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks

Order Information

Item

Dimension(WxDxH)

Max.Capacity

Note

FDB-32D

 350*340*120mm

1:8(4pcs) or1:16(2pcs)

Wall-mounted
