Model NO.:
FTB-104A, FTB-108A
Delivery:
FOB/EXW
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Day
Country of Origin:
china
Stock Time:
3-5 Days
Quantity:

Overview

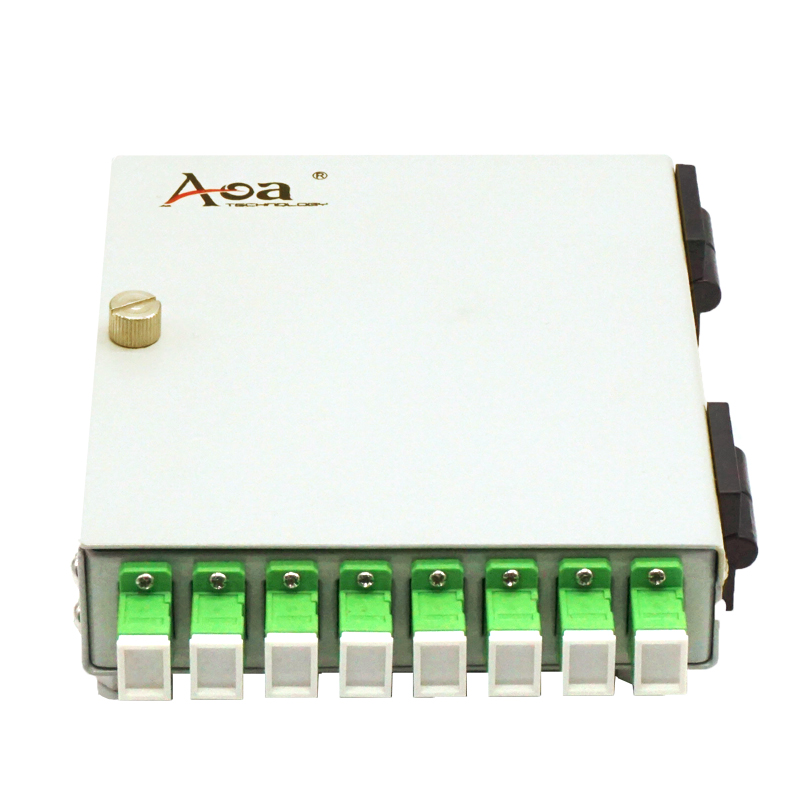

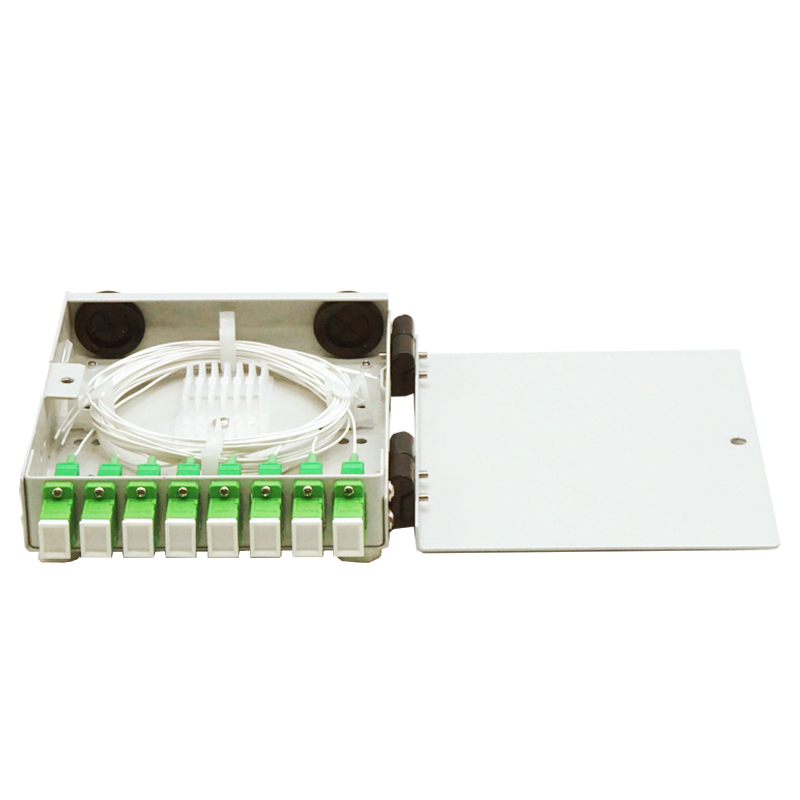

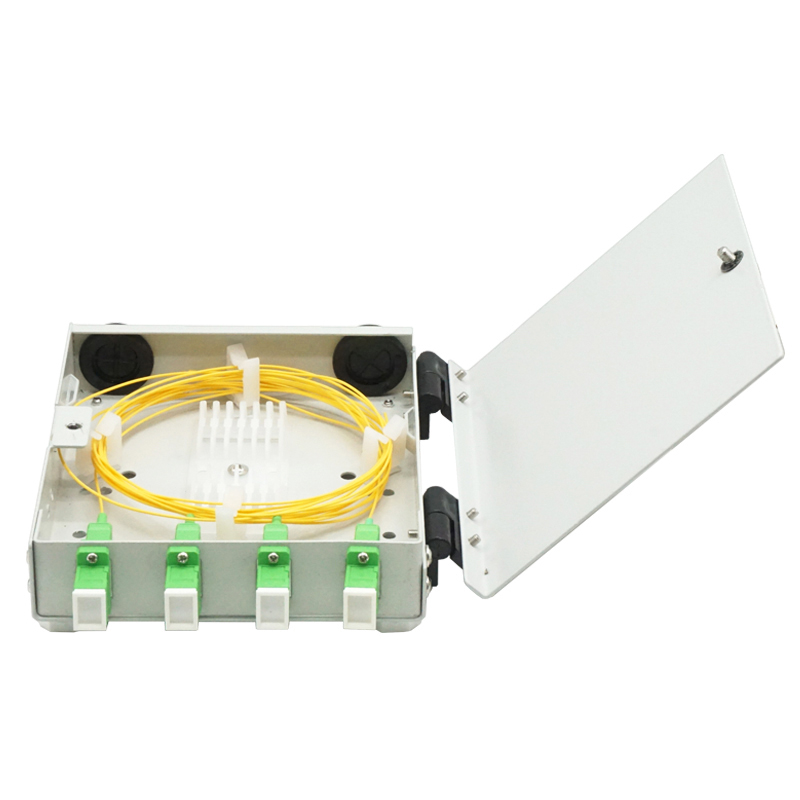

AOA FTB Series FTTH terminal box is used in the end termination of residential buildings and villas, to fix and splice with pigtails. There is 4 ports and 8 ports type box available.

Features

  • Small size, light weight, pleasing in appearance
  • wall mounted with mechanical protection function
  • max fiber capacity 4~8 fibers,4~8 adapters output
  • available for FC,SC,ST,LC adatpers
  • hinge and convenient press-pull button lock design

Application

  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks

Order Information

Item

Dimension(WxDxH)

Cable Diameter(mm)

Max capacity of splice

Material

FTB-104A

115*135*41.5 mm

Ф5~Ф10

4 cores

Metallic

FTB-108A

115*135*41.5 mm

Ф5~Ф10

8 cores

Metallic
