Fiber Termination Box
Fiber Termination Box
Fiber Termination Box
Fiber Termination Box
Fiber Termination Box

Fiber Termination Box

Model NO.
FTB-208
Delivery:
FOB/EXW
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Day
Country of Origin:
china
Stock Time:
3-5 Days
Quantity:

Overview

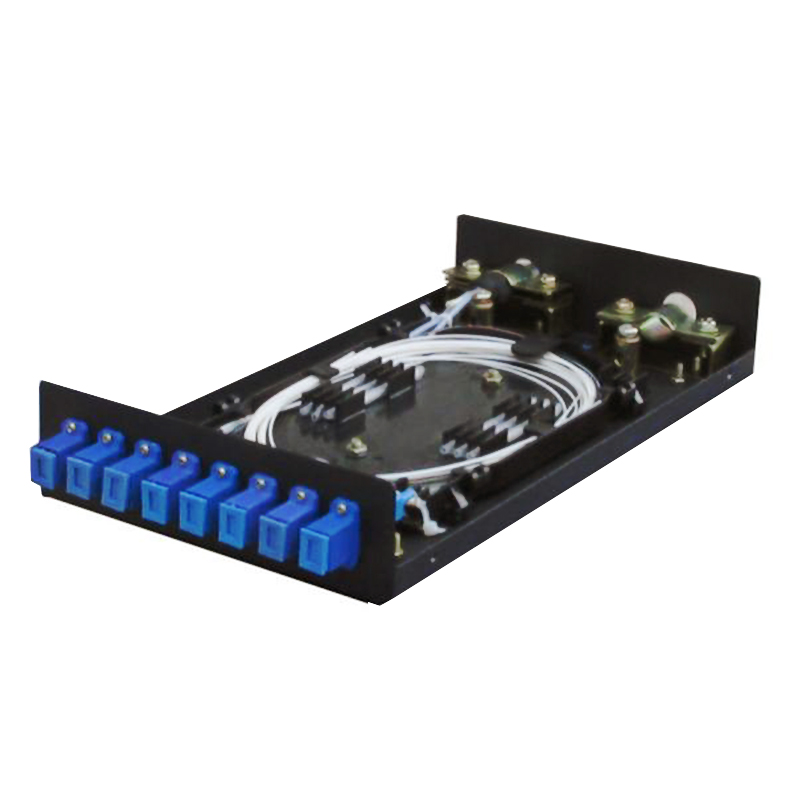

FTB-208 seriesfiber terminal box is able to hold up to 8 cores fibers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.

Features

  • All property indexes are in accordance with National YD/T9251997 Standard.
  • The body make use of cold rolling steel sheet, and the surface use the technique of dim blowing plastic. Strong adhesive force, artistic and durable.
  • Distinctive design of 1-2 cable entrance and fiber exit of 1-24 cores assures flexibility.
  • Cable entrance and fiber exit are sealed with oil resistance NBR to increase the flexibility. Users can choose to prick the entrance and exit.
  • Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.

Application

  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks

Technical Indexes

Item

Specifications

Optical fiber winding radius

40mm

Fiber length left in tray

1.6m

Fiber diameter

250um&900um

Fiber type

SM&MM

Operating temperature

-40 ~ +60 C

Connecting Adapter

SC & LC

Color

Black

Material

Metallic

Weight

1.05KG

Order Information

Item

Dimension(WxDxH)

Max.Capacity

Note

FTB-208

260*140*40mm

8

Wall
