Model NO.:
ODF-E-12/24/48/72/96/144
Delivery:
FOB/EXW
Minimum order quantity:
1 piece
Supply Ability:
2000 piece / Day
Country of Origin:
china
Stock Time:
3-5 Days
Quantity:

Overview

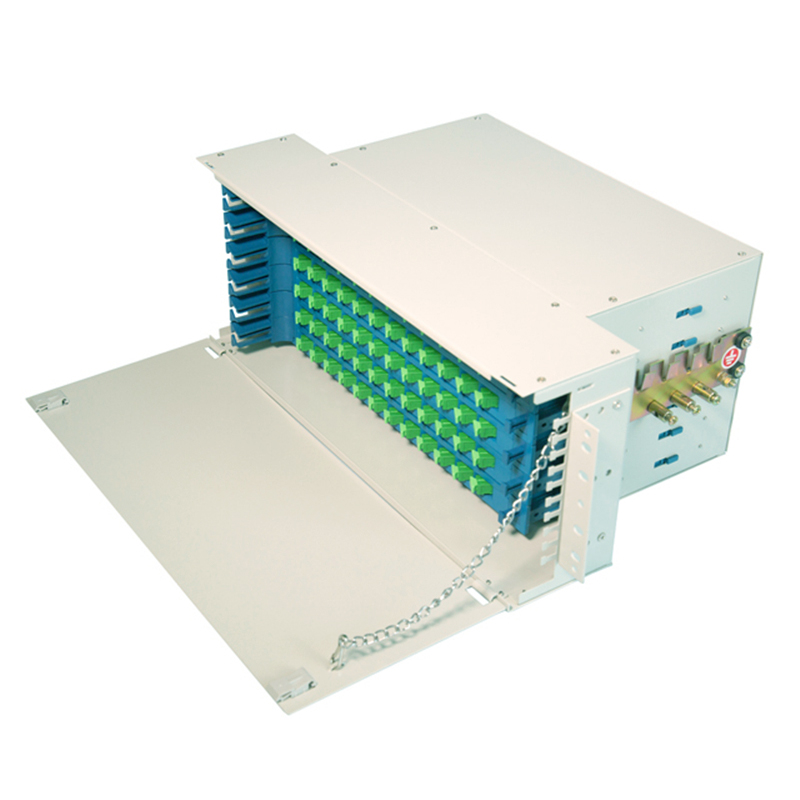

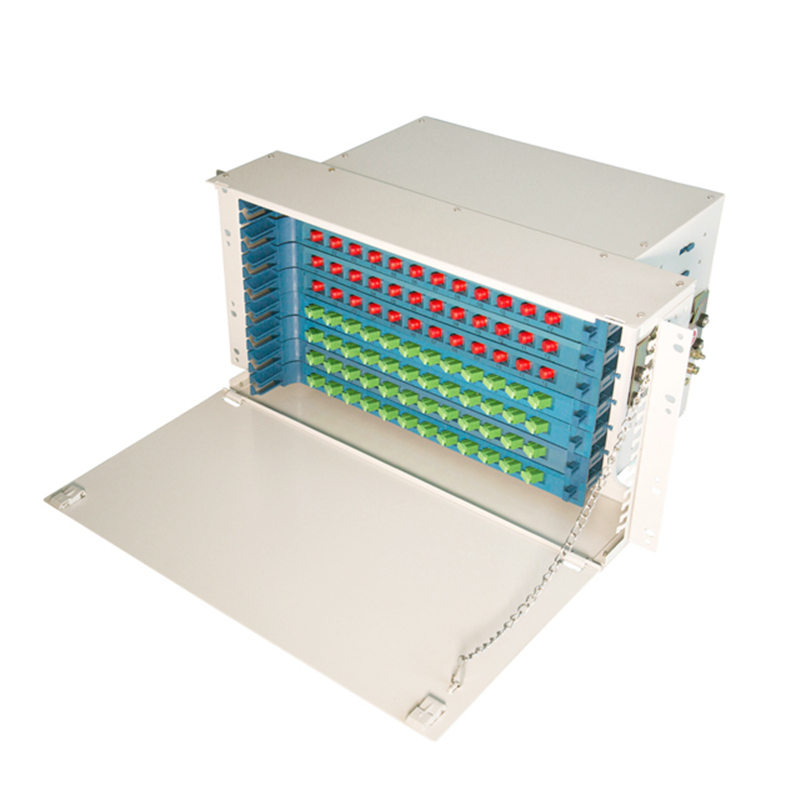

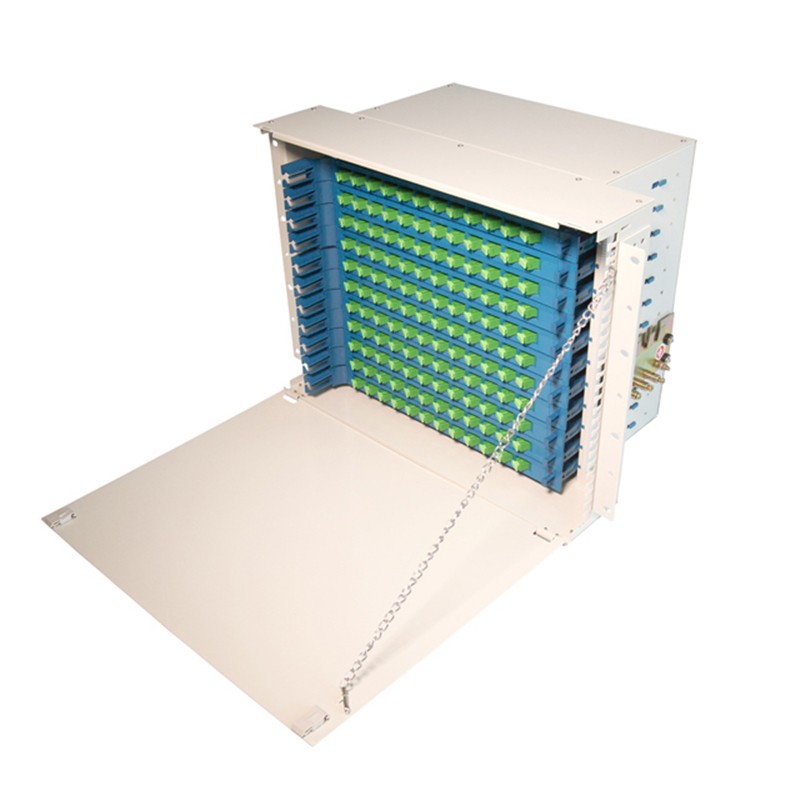

Fiber Management Tray also called ODF Distribution Box, Integrated Splicing and Distribution ODF. It is mainly used for cable inlet, grounding and fixing and the splicing between the terminal end and pigtail. Users can select unit or ring flange amount according to their practical needs.

Features

  • 19standard mounting design with static electric plastic sprayed, nice appearance;
  • Can be used for ribbon & bunch fiber cables;
  • The trays will accept all types of adaptersFC/SC/ST/LC(LC only can be duplex);
  • Pre-installed trays with pigtails and adapters are available;
  • Hinged and removable metal cover door;
  • Cable fixation and grounding function;
  • It is flexible for installation and convenient for operation and maintenance.

Application

  • Widely used in FTTH access networks
  • Telecommunication Network
  • CATV Networks
  • Data Communication Network

Technical Indexes

  • Working temperature: -5°C - +40°C
  • Environmental temperature: -25°C - +55°C
  • Relative humidity: 85% (when the temperature is below 30°C)
  • Atmosphere pressure: 70 Kpa106Kpa
  • Insertion loss: 0.3dB
  • Return loss: PC40 dB UPC50dB APC60dB
  • Insulating resistance between the box and the earthing device:1000MΩ/500VDC
  • Voltage-resistance between the box and the earthing device: Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.

Order Information

Type

Dimension

(mm)

Inner carton dimension (mm)

Inner carton weight

(KG)

Outer carton dimension (mm)

Outer carton weight

(KG)

No of units per carton

(PCS)

ODF-E-24

480×260×88(2U)

450*320*110

4.6

475*340*480

21

4

ODF-E-48

480×260×133(3U)

475*335*170

6.5

500*350*540

22

3

ODF-E-72

480×260×175(4U)

470*335*220

8.2

500*350*460

19

2

ODF-E-96

480×260×228(6U)

470*335*290

12.2

500*350*460

26.4

2

ODF-E-144

480×260×350(8U)

470*335*330

14.5

500*350*460

16.5

1
