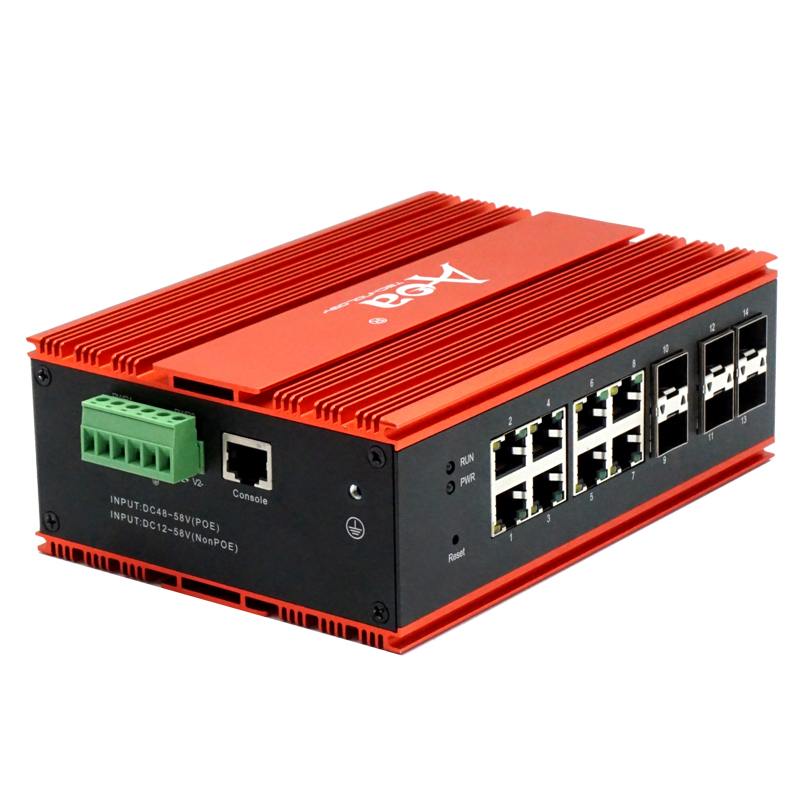

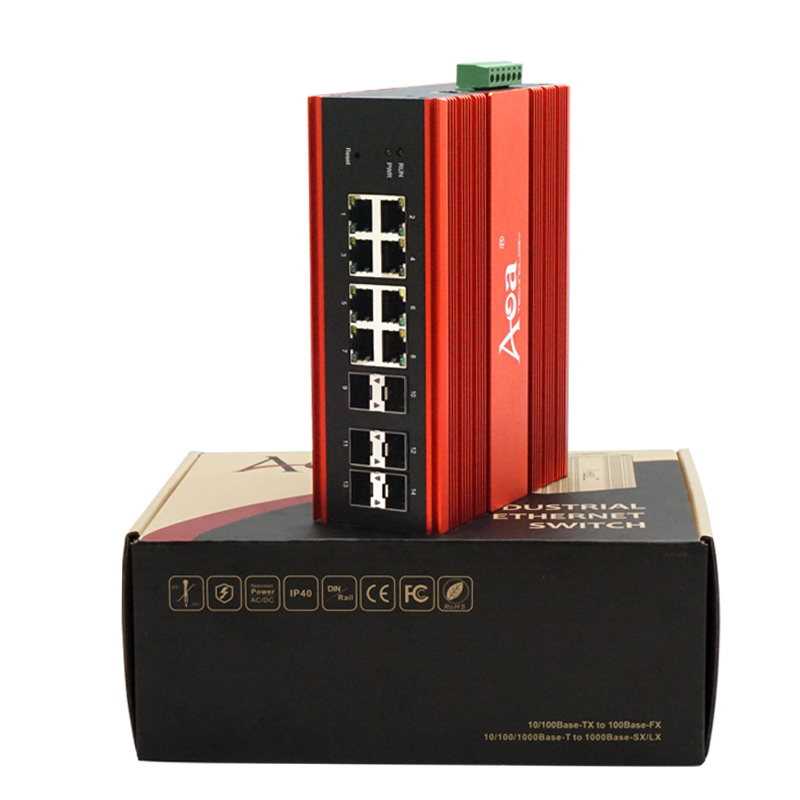

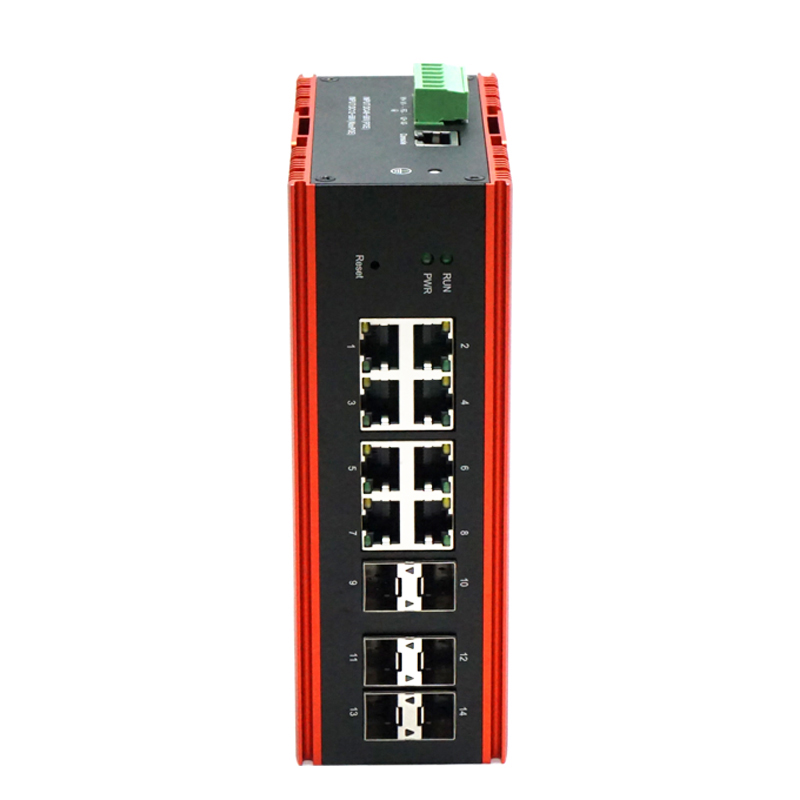

IMS3210-608P Industrial Managed Switch are fully managed L2 switches, adopt store-forward architecture, fan-less and energy-saving design, with 8*10/100/1000Base-T with POE af/at port and 2*1.25G/155M SFP fiber port. Full-series design with protection against lightning,anti-static and operate in -40°C~85°C for harsh environments; such as industrial automation, public security, power system, intelligent transportation systems (ITS), shipping, mining ,water conservancy and oil fields.
HardwareFeatures
ERPS (G.8032)
Loop Protection
Redundant dual DC input power 12/24/48VDC (9.6~60VDC)
Provide power polarity reverse,Overload current protect function
2.25K VDC Hi-pot isolation protection for Ethernet ports and power
4KV surge protection for UTP and fiber ports
SFP 100/1000Base-X
IP40 Aluminum metal case protection
DIN-rail default, Wall Mount kits optional
Supports EFT protection 6000VDC for power line
Supports 8~15KV ESD protection
-40°C~85°C operating temperature
Low power consumption
Technical Specifications
Standards
IEEE802.3 10BASE-T; IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X
IEEE802.3xFlow control and back pressure; IEEE802.1Q VLAN
IEE802.3af/atPOE
IEEE802.1w RSTP
IEEE802.1s MSTP
IEEE802.1d STP
Switching Capacity
28Gbps/non-blocking
MAC Address Table
8K
Data Buffer
4M
Maximum Frame Size
9.6K Jumbo Frame
Copper
8*10/100/1000Base-T, RJ45
ESD protection
EFT protection
Fiber
6*100/1000Base-X,SFP Slot
POE
PIN: 1/2(+), 3/6(-)
Power range: DC48-57V
Output power / working time management
Console
RS232 (RJ45)
Key Switch
Reset
Power
DC:48V~58V,
6-PIN Removable Terminal Block
Overload voltage protection
Overload current protection
Reverse Polarity protection
Lightning protection:6KV
ESD: 8~15KV
LED Indicators
PWR, RUN, Link/Act, Speed, Fiber Link, POE
Operating Temperature
-40 ˚C~+85 ˚C
RelativeHumidity
5-95% (no condensation)
Housing
IP40 Protection, Aluminum Alloy, fan-less
Mounting

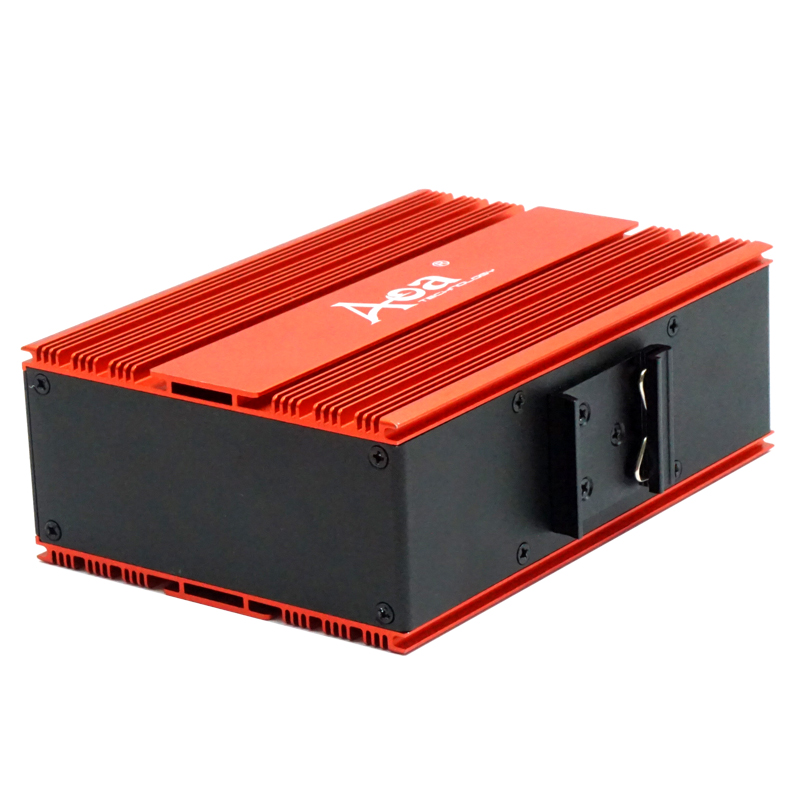

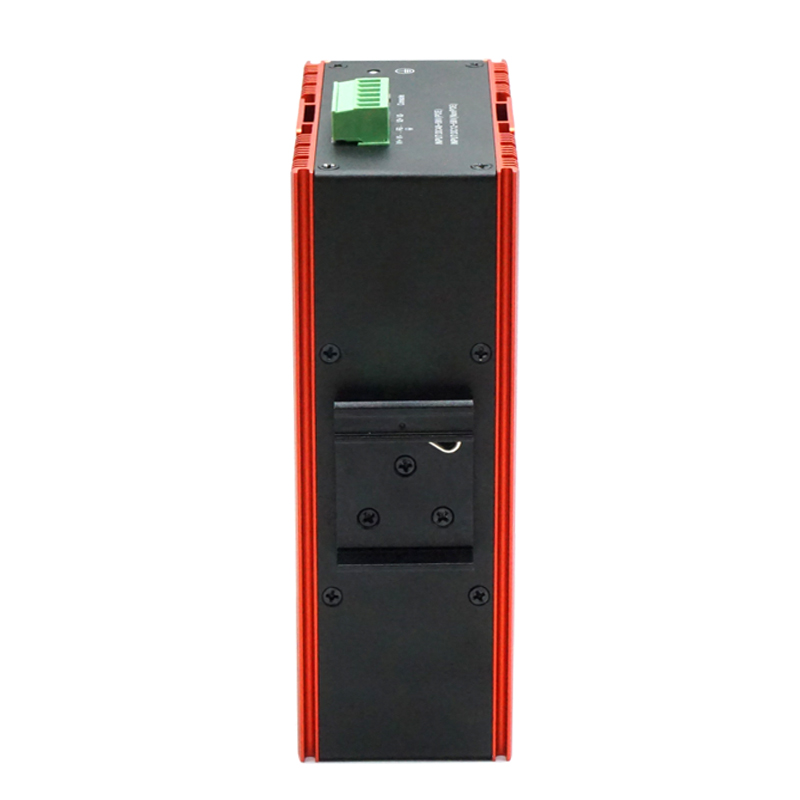

DIN-rail 35-7.5, wall mounting(with optional kit)
Dimensions
169*117*50mm(device); 235*170*95mm(packing)
Weight
0.75kg(device); 0.93kg(device with packing)
Regulations
CE/FCC/ROSH
Software Feature
L2 Features
Port Features
IEEE 802.3x flow control
Interface counters
Storm control
Port isloated
Link Aggregation
Static aggregation
Dynamic aggregation, LACP
Mirror
Port-based mirror
Vlan-Based
Flow-Based
Spanning Tree
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
VLAN
Port-based VLAN
access/trunk/hybrid-port
4094 IEEE802.1Q VLAN VID
GVRP
Mac-address table
IEEE 802.1q
MAC address: 8K
Support MAC address automatic learning and aging
Static mac-address
Dynamic mac-address
Security mac-address
Loop Protection
Supported
Private VLAN
Supported
ERPS (G.8032)
Single ring
Sub-Ring
Multi-ring
Load balance
Recovery Time < 50ms
Layer 2 Multicast
IGMP Snooping V1/V2/V3
Source Port Check
IGMP Fast Leave; Filter, Agent
Security
ACL
ACL (IP Standard ACL), IPV4/IPV6
MAC extend ACL;IP extend ACL
Support matching L2, L3, L4 layer fields
Support log, redirection, mirroring, speed limit
QoS
QoS Class, Remarking
SP, WRR queue scheduling
SP,WRR, SP+WRR
Ingress Port-based Rate-limit
Ingress Priority-based Rate-limit
Egress Port-based Rate-limit
Egress Queue-based Rate-limit
Policy-based QoS
Storm Control
IEEE 802.1p 8 active priorities queues for per port
