Overview

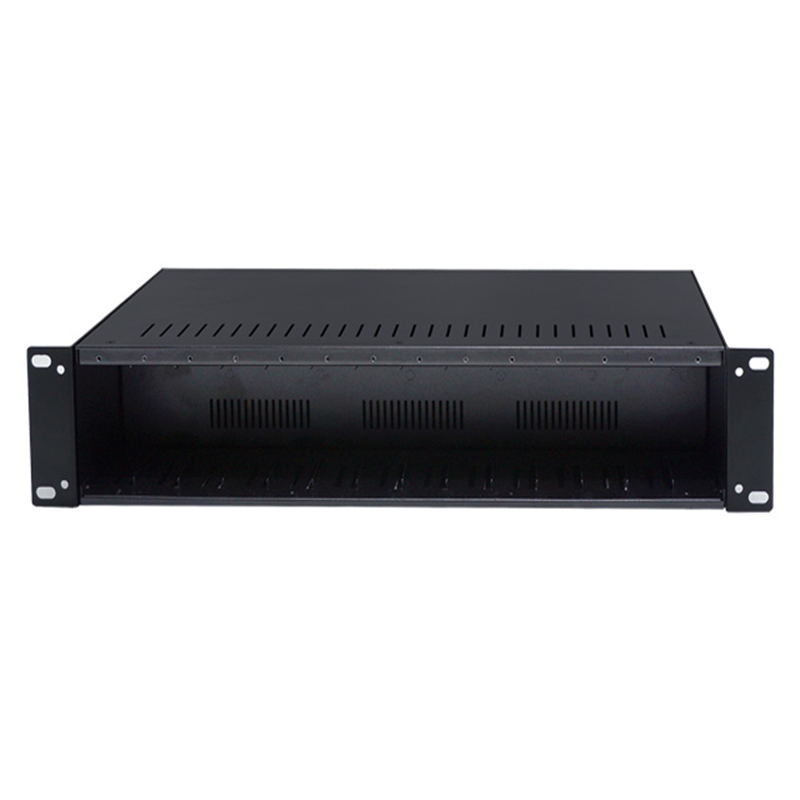

AOR-14 series is cost-effective media converter rack (2U)widelyused in the equipment room. Different types of stand alone type media converter developed by our company can be inserted into this rack, which total slots up to 14. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.
Features
- High quality 19’’ chassis-Mountable Chassis installation.
- Supports up to 14 hot-swappable media converters.
- Each power supply with one fan which brings the air-flow for system cooling.

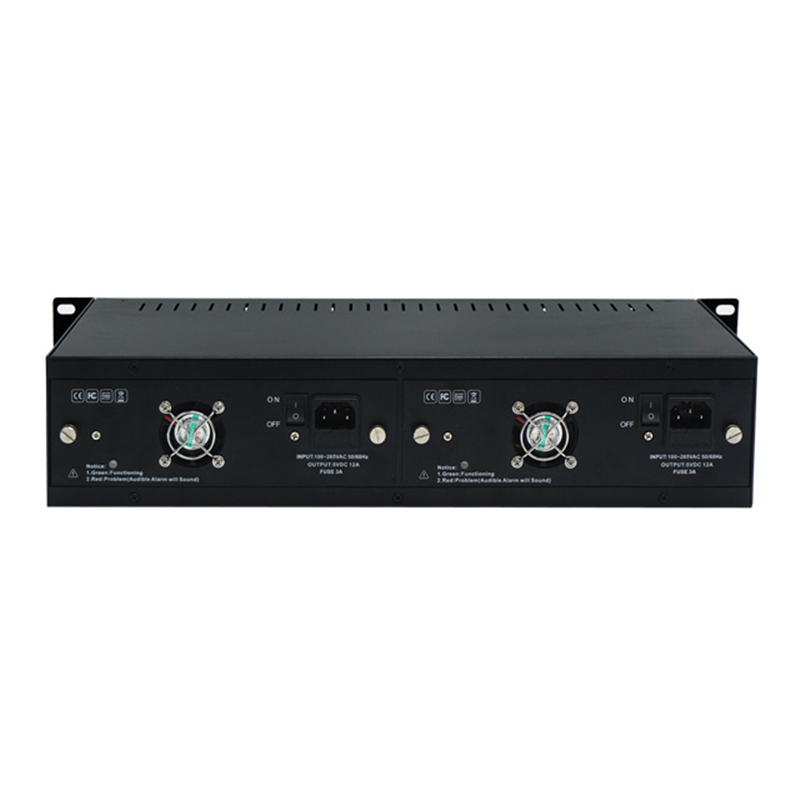

- Two power slots at rear panel for redundant power support with options of AC or DC supplies.
- Bay power isolation, ensure each bay is electrically isolated from each other.

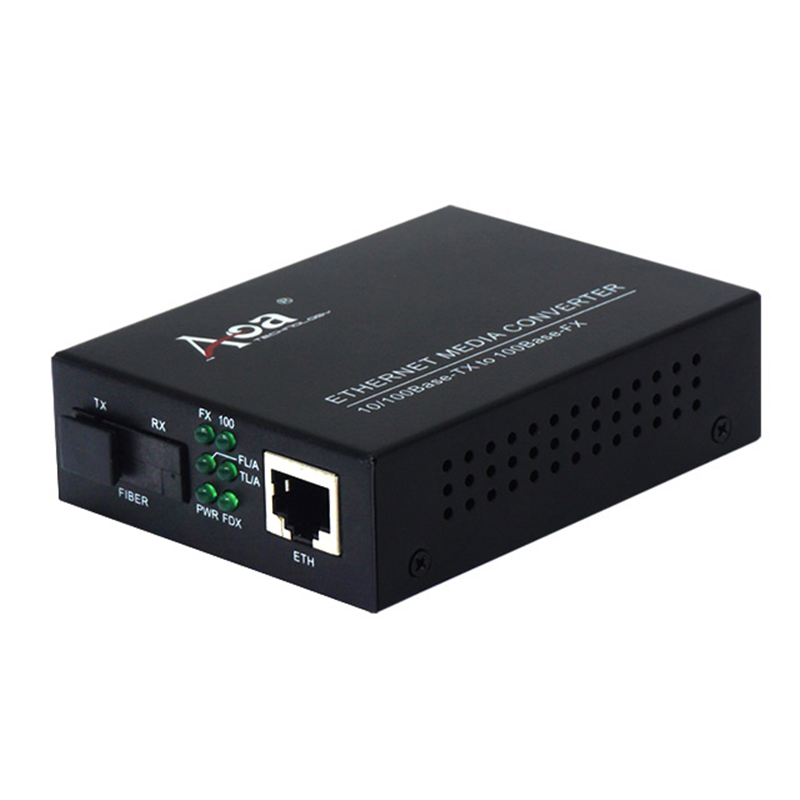

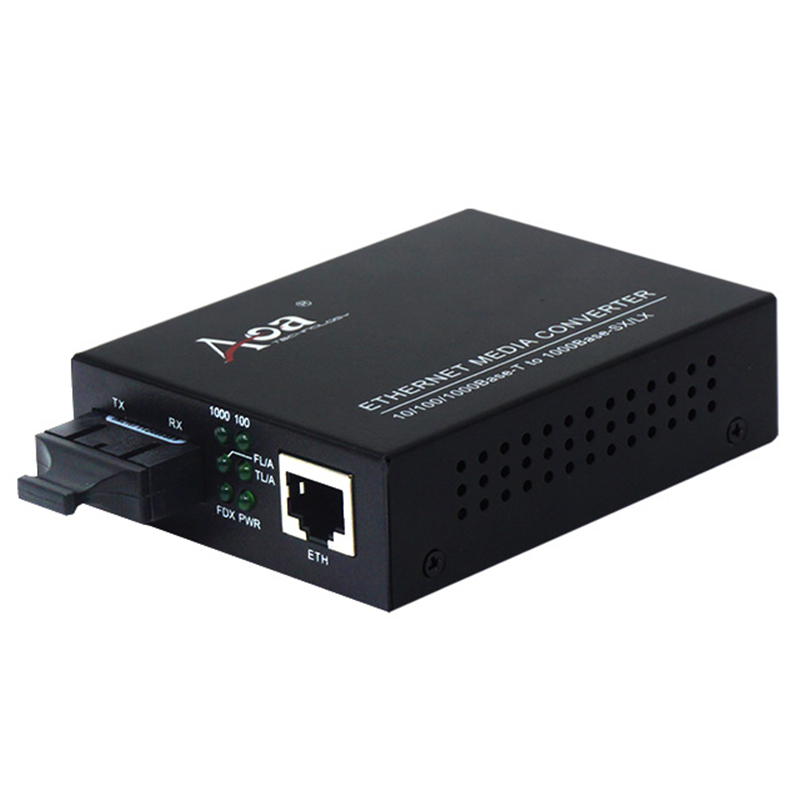

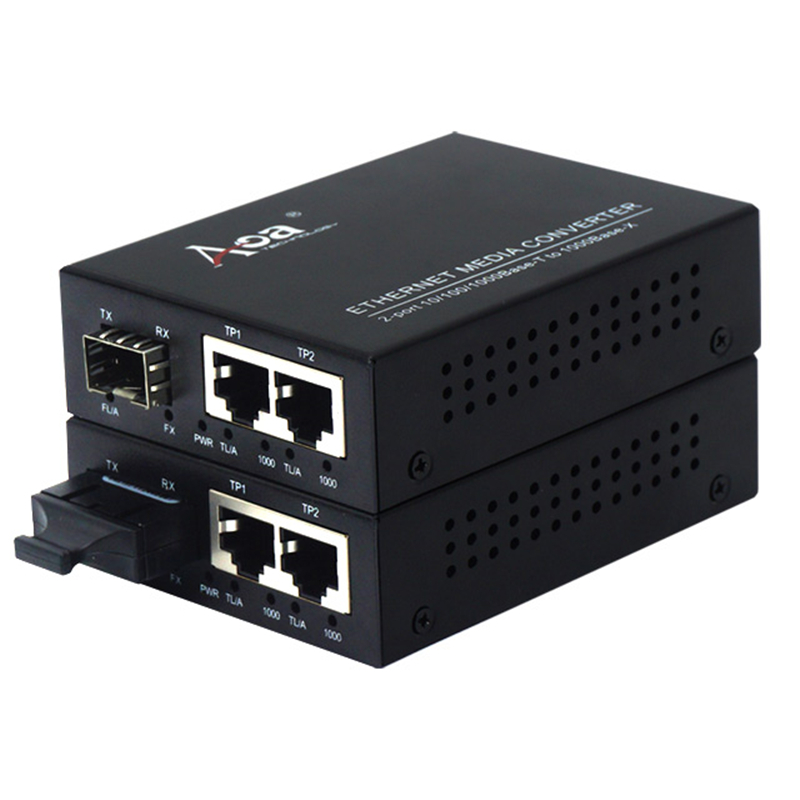

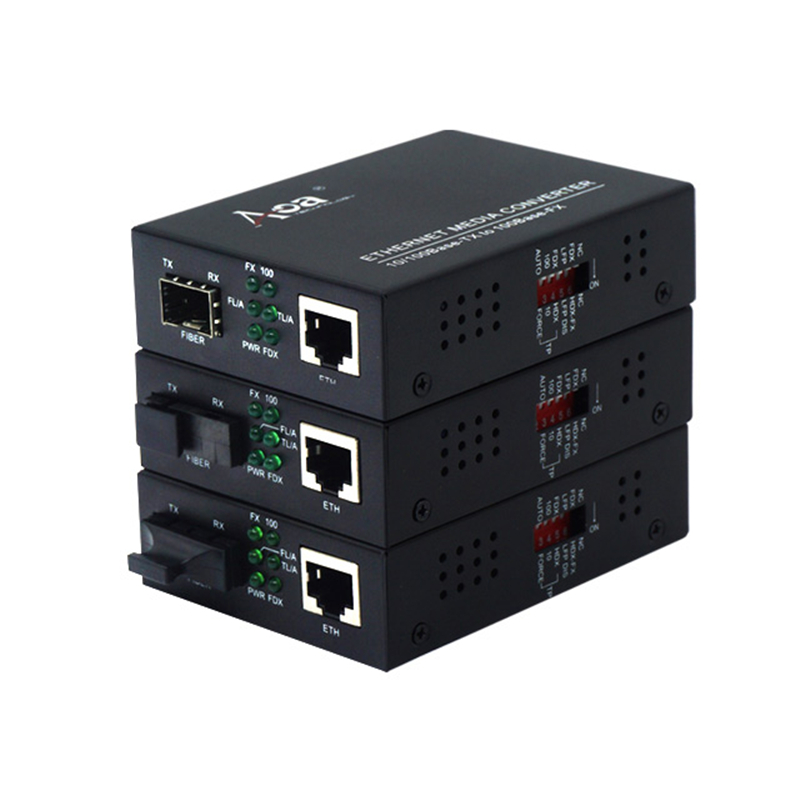

- Support multiple converters with 10/100/1000Mbps, copper, fiber, single/multi-mode, ST/SC/SFP connectors.
- Reduce the effort of converter maintenance and management, diagnose the status at one time.
- Cost-effective, easy install.
- Conforms to FCC, CE, RoHS.
Application

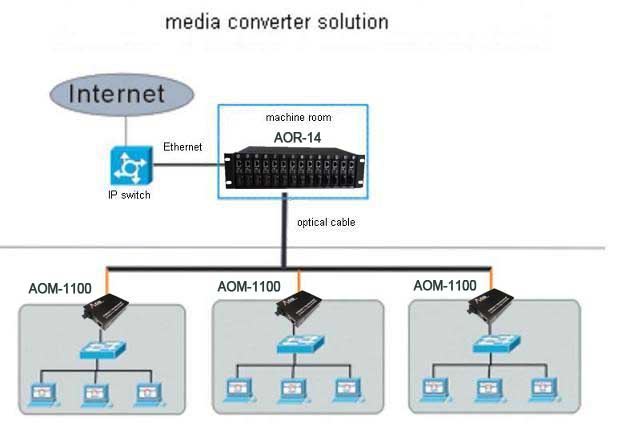

Optical Ethernet long-distance transmittingnetwork
Technical Indexes
Parameter | Specifications |
Number of slots | 14 |
Structure | 2U rack |
Power input | AC Voltage: AC 100~265V; frequency: 50/60 Hz DC voltage: DC 40~70V |
Power output | DC5V 12A |
Ripple | ≤20mv |
Power configuration | Single power supply orDual power supply |
LED indication | POWER (power supply) |
Max power consumption | 60W for Single power supply;120W for Dual power supply |
Operating temperature | -20~65ºC |
Operating humidity | 5%~90% |
Maintaining temperature | -40~70ºC |
Maintaining humidity | 5% ~ 90% non-condensing |
Dimensions of rack | 427mm* 230mm* 90mm |
Order Information
Model | Product description |
AOR-14-2A | 14-slot dual-power supplies rack (220V) 19''2U |
AOR-14-2D | 14-slot dual-power supplies rack (-48V) 19''2U |
AOR-14-AD | 14-slot dual-power supplies rack (220V -48V) 19''2U |
