Model NO.
AES3208P-SFP
Delivery:
FOB
Supply Ability:
2000 piece / Day
Country of Origin:
SHENZHEN
Stock Time:
5 Days
Quantity:

Overview

TheAES3208PPOE Switch is the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices, which are installed 100m far from a Power over Ethernet switch. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote Power over Ethernet Device to operate without the need of any additional power source. All Power over Ethernet Powered Devices (IEEE 802.3af/at complaint) are supported, as the Power Sourcing Equipment (PSE) device can deliver a full 15.4W / 30W of power to the remotePDdevice.

TheAES3208Pfeatures 2x 1000Base-X SFP Slot and 8x 10/100/1000Base-T twisted-pair port. The SFP slot port for any kind of MSA-compliant pluggable 1.25G SFP Transceivers.The twisted-pair port has 8x RJ-45 connector with a maximumoperating distance of 100m.

Features

  • Provide8x 10/100/1000Base-T
  • 2 x 1000Base-X SFP Slot for Daisy-Chain
  • IEEE803.3af/at compliant
  • RJ45 support auto MDI/MDI-Xfunction
  • Auto-negotiation speed, half/full-duplex
  • Store-and-forward
  • Max packet size: 10K bytes
  • Wide-rangepower design (48~56VDC)
  • Provide EFT protection for Power line
  • Support Ethernet ESD protection
  • Desk-topInstallation
  • Low power consumption

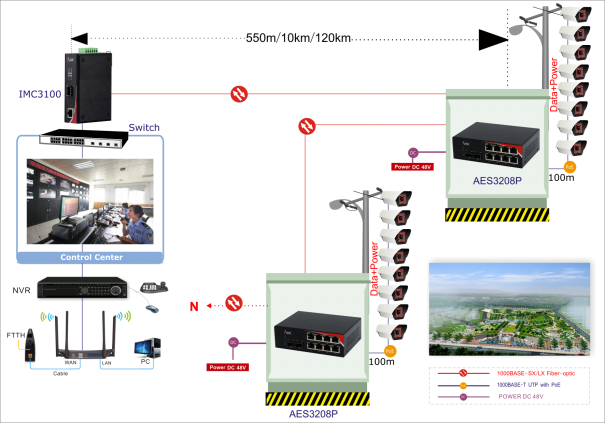

Application

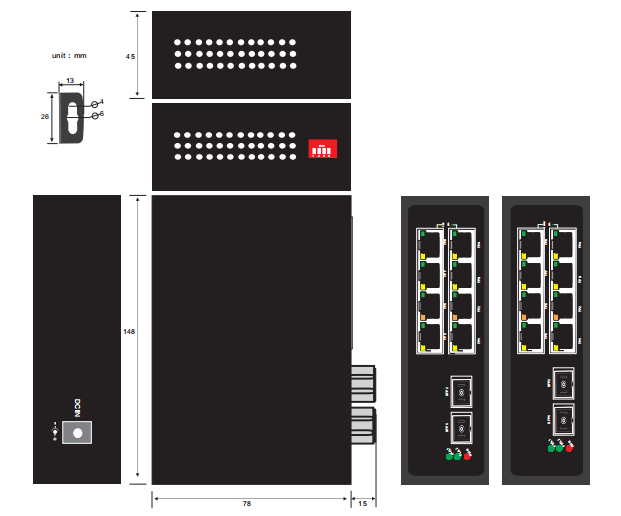

Structure

DIP Switch

DIP Switch Define

Dip1

Dip2

Dip3

Dip4

Default (10/100/1000M Auto-negotiation)

OFF

OFF

OFF

N/C

VLAN Logical Isolation

ON

OFF

OFF

VLAN Physical Isolation

OFF

ON

OFF

Force10M(150meters)

ON

ON

OFF

1+1 Fiber

OFF

OFF

ON

1+1 Fiber + VLAN Logical isolation

ON

OFF

ON

1+1 Fiber + VLAN Physical isolation

OFF

ON

ON

1+1 Fiber + Force 10M(150meters)

ON

ON

ON

Note: The 1+1 Fiber function takes effect in using our 4 ports or 8 ports Industrial switch at both side; the one fiber device doesn't support this function.

Technical Specifications

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/LX standards

IEEE802.3x Flow control and back pressure

IEEE802.1d Spanning Tree

IEEE802.3af/at POE

Performance

Processing Type: Store and Forward

BackBandwidth:20Gbps

MAC Address Size:16Kbit

Packet Buffer Size:2Mbit

Time Delay: <10us

Frame:10kbytes

Copper Port

Data Rate: 10/100/1000M

Connector: RJ45 x 8

Distance:100m

Fiber Port

Data Rate: 1.25G

Connector: SFP slot x 2

Distance: Up to SFP Transceivers

LED indicators

PWR: ON=Power Connected

FL/A1:ON=Fiber1Connected; Active=Data Transmitting

FL/A2:ON=Fiber2Connected; Active=Data Transmitting

L/A: ON=Copper Connected; Active= Data Transmitting

POE: ON=Power Working; Off=No Power

Power

Input Voltage: 48~56VDC

Power Consumption: 8W

PoE Budget: 15.4Wx8=123W(PoE) 30Wx8=240W(PoE+)

Connector:DC Socket

Environment

Operating temperature : -10~65ºC

Storage Temperature: -40~85ºC

RelativeHumidity: 5-95% (no condensation)

Physical Characteristics

Installation:Desk-top

Dimension: 148*78*45mm

Weight: 0.74

Order Information

Model No.

Description

AES3208P-SFP

10/100/1000M2GX8GE POE,SFP Slot; Ext.AC

AES3208DP-SFP

10/100/1000M2GX8GE POE,SFP Slot, DIP Switch; Ext.AC
