Media Converter

Model NO.: AOM-1100
Delivery:: FOB
Minimum order quantity:: 10 pieces
Supply Ability:: 2000 pieces / Day
Country of Origin:: SHENZHEN
Stock Time:: 5 Days

Quantity:

Product Description

Overview

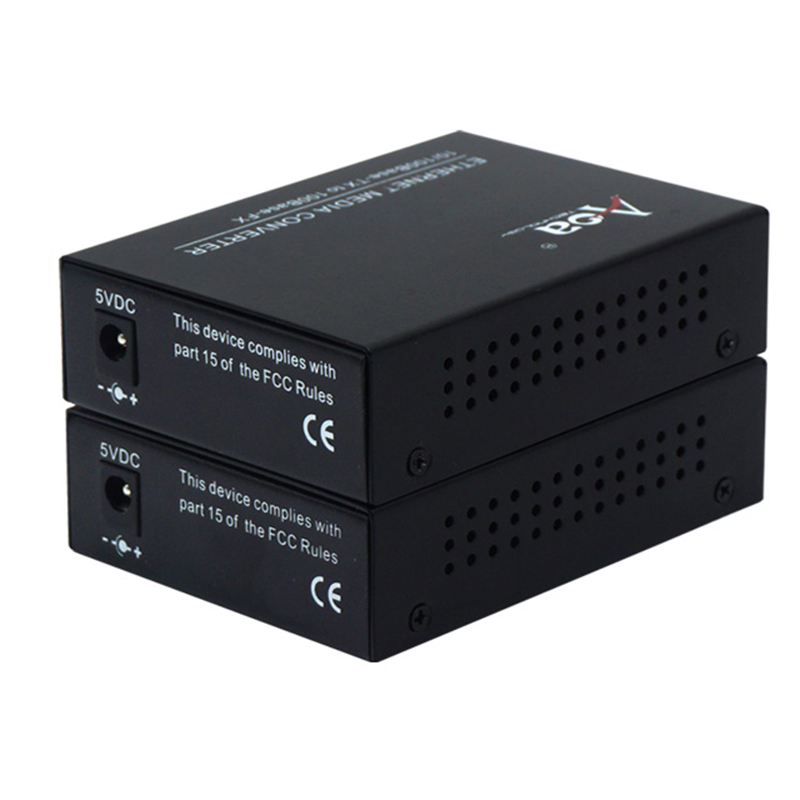

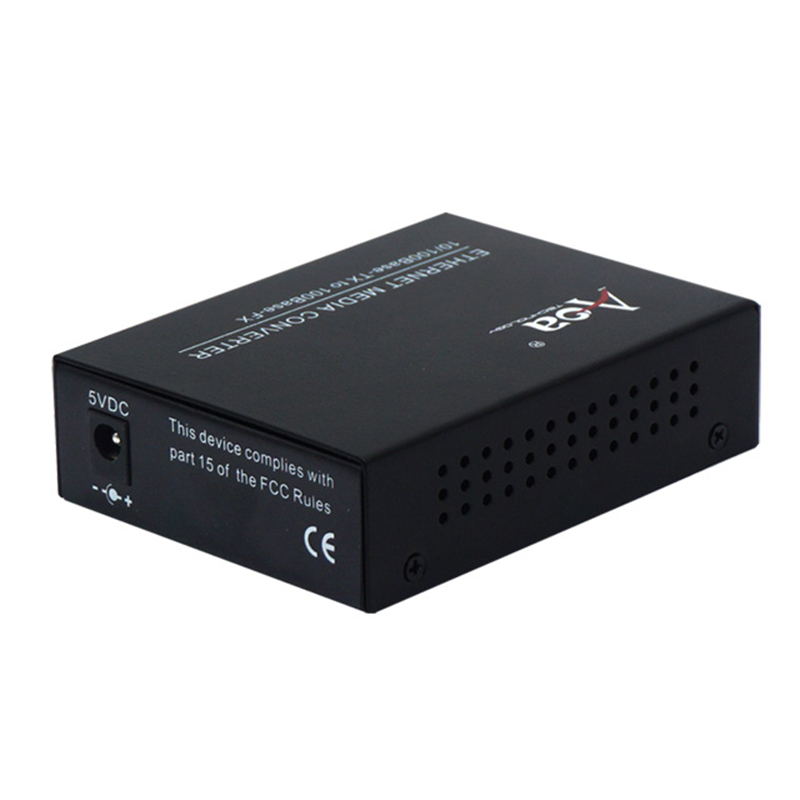

AOM-1100 Serial 10/100M Fiber Media Converter translates the signal from a twist-pair 10/100Base-TX cable to 100Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 120km by fiber optic cable

Features

10/100Mbps auto-sensed, easily upgrade
Full-duplex and half-duplex auto-sensed
MDI/MDI-X Auto Negotiation
10/100Mbps store-and-forward
Supporting extra-long packets up to 1600 bytes
Supporting VoIP /QoS packets
Support flow control and reduce broadcast packets
Supporting STP to form a redundant network
Extremely low power consumption, low heat, stable performance
Providing Desktop, Wall-mounted, Chassis installation

Application

Network Communication
FTTH / FTTB / FTTx
ISP Backhaul Networking

Technical Indexes

Standards	IEEE802.3 10BaseT IEEE802.3u 100BaseT(X) IEEE802.3x Flow control and back pressure IEEE802.1d Spanning Tree
Performance	Processing Type: Store and Forward Back Bandwidth: 400Mbps MAC Address Size:4Kbit Packet Buffer Size:512Kbit Time Delay: <10us Frame: 1600bytes
Copper Port	Data Rate: 10/100M Connector: RJ45 Distance: 100m
Fiber Port	Data Rate: 155M Connector: SC as default, FC/ST Optional Distance: MMF 2km,SMF 20/40/80/100/120km, Bi-di:20/40/80/100/120km

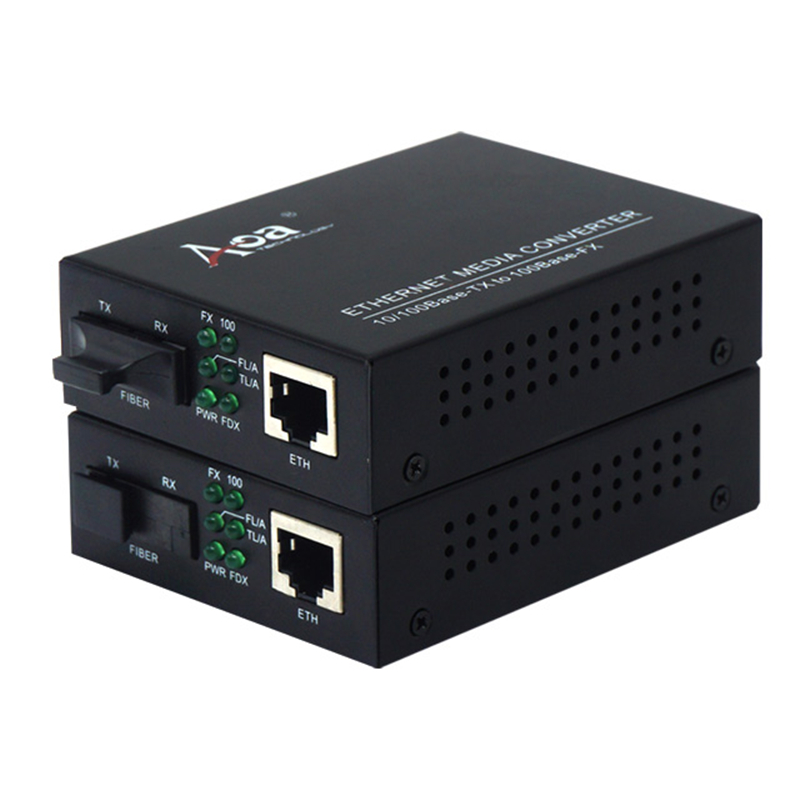

LED indicators	FL/A (optical link/action) TL/A (twisted pairs link/action) FDX (FX full duplex) 100 (100M transmission rate of twisted pairs) PWR (power supply)
Power supply	Working power: DC5V 1A AC Power Supply: 100V~ AC240V to 5V1A External / Internal Power Supply Optional
Environment	Operating temperature : -20~65ºC Storage Temperature: -40~85ºC RelativeHumidity: 5-95% (no condensation)
Physical Characteristics	Installation: Desk-top, wall mounting, Chassis Dimension: 947026mm (External power supply) Weight: 0.4kg (External power supply)

Order Information

Model No.	Data Rate	Fiber Mode	Wavelength	Fiber Connector	Distance	Power Supply
AOM-1100-M02-EA	10/100M	MMF	1310nm	SC	2km	Ex.AC220V
AOM-1100-S20-EA	10/100M	SMF	1310nm	SC	20km	Ex.AC220V
AOM-1100-A20-EA	10/100M	Bi-di	TX1310/RX1550nm	SC	20km	Ex.AC220V
AOM-1100-B20-EA	10/100M	Bi-di	TX1550/RX1310nm	SC	20km	Ex.AC220V

Relative Product

14 Slot Chassis System For Standalone Type
AOR-14-2A	14 Slot Chassis with double AC220V Power Supply, for standalone type
AOR-14-2D	14 Slot Chassis with double DC48V Power Supply, for standalone type
